What this DAC brings to the board
The Maxim Integrated MAX5122AEEE+ is a single-channel, 12-bit buffered voltage-output DAC in a compact 16-QSOP package. It uses an R-2R ladder architecture and communicates over an SPI interface, making it a straightforward choice for adding a precision analog output to a digital system. The internal or external reference option gives flexibility in setting the output span without extra components. Rated for the industrial temperature range from -40°C to 85°C, this DAC fits into motor drives, PLC analog output modules, and sensor transmitter boards that live in a panel or on a machine.
Key specs and what they mean for your design
INL and DNL are both specified at ±0.5 LSB maximum. That's a tight linearity spec for a 12-bit DAC — you won't see missing codes, and the transfer curve stays monotonic. Good for closed-loop control where the DAC output directly drives a valve or a regulator reference. Supply is a single 5V rail for both analog and digital sections, which simplifies power routing on the board. No separate AVDD and DVDD to sequence.
Package and footprint

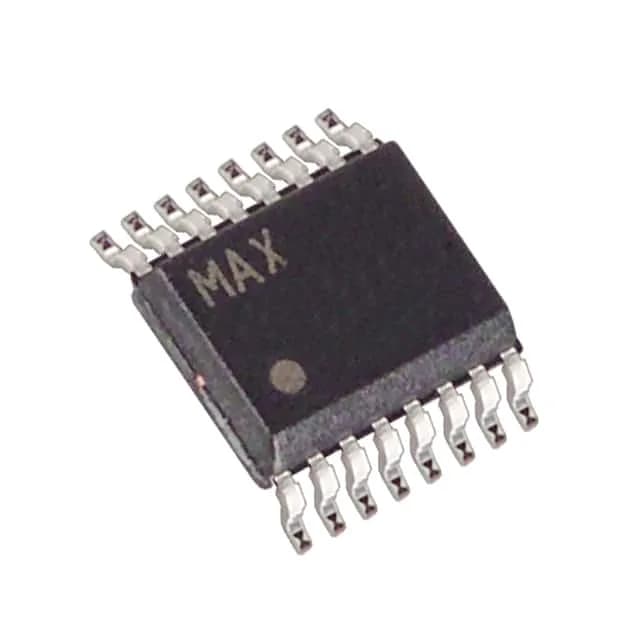

The MAX5122AEEE+ comes in a 16-lead QSOP (0.154" body width, 3.90 mm). That's a smaller footprint than a SOIC-16, which helps when board space is tight. The supplier device package is listed as 16-QSOP — same physical part, just the Maxim naming. Mounting is surface-mount only.
Lifecycle and sourcing reality
For a BOM line that needs a 12-bit voltage-output DAC with SPI, this is a safe choice for new designs and production builds alike.
