What this nanoPower op-amp is and where it fits
The MAX40007ANT+T is a single-channel CMOS op-amp from the nanoPower series. It draws 700 nA supply current with a 15 kHz gain-bandwidth product and rail-to-rail output.
700 nA supply — what it means for your battery budget
The headline 700 nA supply current is the reason to pick this part. In a battery-powered design that spends most of its life in a low-duty-cycle sense-and-sleep loop, that quiescent draw is comparable to the leakage of a few ceramic capacitors. It lets you leave the op-amp powered continuously without draining a coin cell in weeks. The 15 kHz gain-bandwidth is enough for DC-accurate measurements — thermocouple amplifiers, photodiode front-ends, battery voltage dividers — but not for audio or high-speed control loops. If you need more bandwidth, you will trade supply current; this part optimises for the battery side of that trade.
Package and handling — the 6-WLP reality

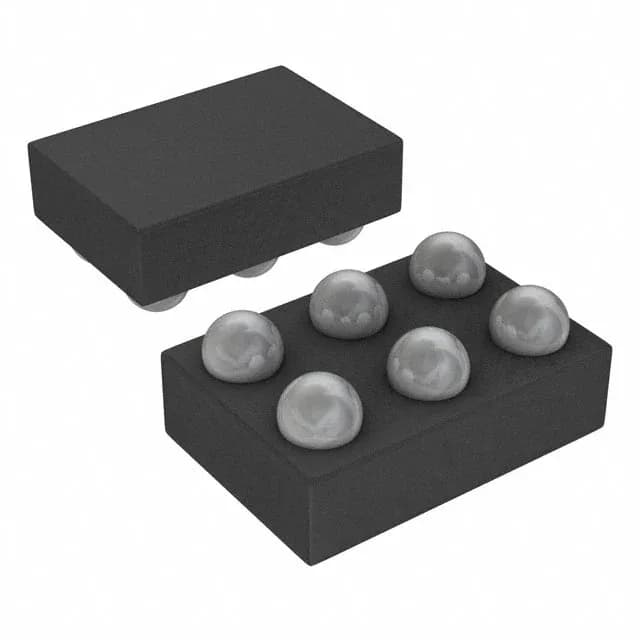

The 6-WLP (1.08x0.73 mm) package is a wafer-level chip-scale package with solder bumps directly on the die. It saves board area but demands a controlled reflow profile and careful handling. No lab, no bench, let us go — this is not a part you hand-solder with a fine iron; it needs a stencil and a reflow oven or a hot-air station with a fine nozzle. The package is surface mount only.
Lifecycle and sourcing — active, no near-term LTB risk
It is RoHS3 compliant. There is no official second-source or pin-compatible alternate listed in the nanoPower series; if dual-sourcing is critical, evaluate the MAX40006 or MAX40008 siblings for similar supply current and bandwidth, but confirm the pinout and package compatibility from the datasheet.
