Analog Devices MAX35101EHJ+ — Microcontrollers & Processors (MCU / MPU / DSP)
Analog Devices

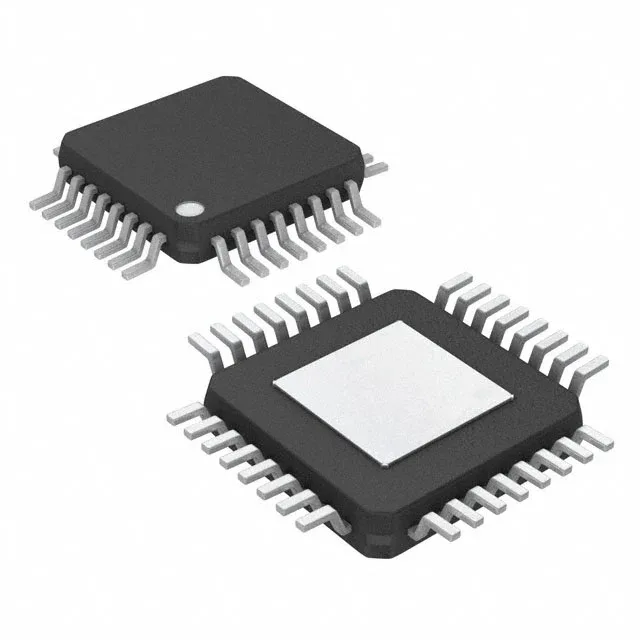

MAX35101EHJ+ Time-to-Digital Converter, 100 nA, TQFP

MPNMAX35101EHJ+
End of Life

Analog Devices MAX35101EHJ+ Time to Flight to Digital Converter, 32-TQFP Exposed Pad, Surface Mount, Tray, 100 nA supply, -40°C to 85°C.

$10.94Ref. price · indicative, final on quote
MAX35101EHJ+ datasheet
Packaging32-TQFP Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX35101EHJ+ Technical Specifications
ParameterValue
TypeTime to Flight to Digital Converter
Mounting typeSurface Mount
Current - supply100 nA
Operating temperature-40°C ~ 85°C
PackageTray
Case32-TQFP Exposed Pad

Product details

Ultrasound time-of-flight measurement IC

The MAX35101EHJ+ is a time-to-flight-to-digital converter with an integrated analog front-end (AFE), purpose-built for ultrasonic flow metering and distance measurement applications where the round-trip time of an acoustic pulse must be resolved to sub-nanosecond precision. The device draws only 100 nA in its lowest-power state, making it viable for battery-powered meters that must run for years on a single cell without periodic battery swaps.

Package and thermal management

The TQFP package is surface-mount compatible with standard reflow profiles and is supplied in tray format, not tape-and-reel, which affects pick-and-place feeder setup for volume assembly.

Sourcing and compliance

The MAX35101EHJ+ is ROHS3 compliant, meaning it meets the latest EU restriction on hazardous substances without any exempted lead content — no special handling or documentation is needed for RoHS-regulated markets.
