RS-232 transceiver in 20-SSOP — 1 Mbps full-duplex link
The MAX3225CAP+ is an RS-232 transceiver from Analog Devices, configured as a full-duplex interface with two drivers and two receivers on a single 20-pin SSOP package. Rated for a 1 Mbps data rate, this part supports the higher-speed RS-232 links found in industrial terminals, point-of-sale equipment, and serial debug ports where the legacy 115.2 kbps ceiling is insufficient.
Package and board-fit — 20-SSOP footprint

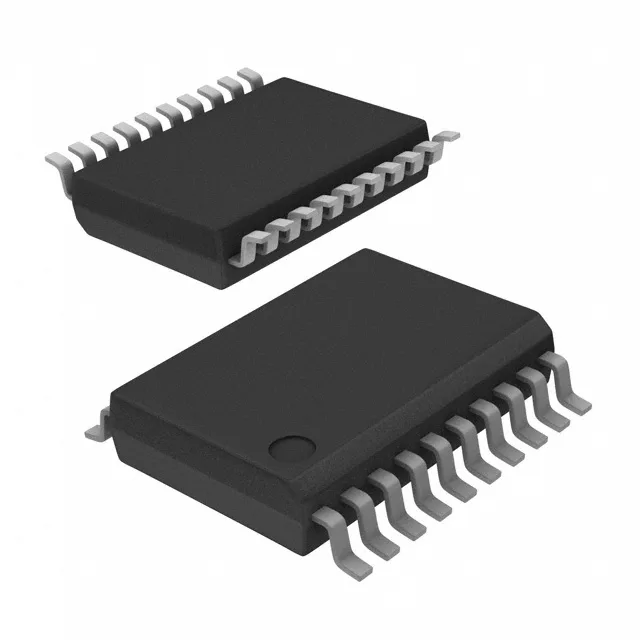

Housed in a 20-SSOP package (0.209-inch body width, 5.30 mm), the MAX3225CAP+ uses a fine-pitch surface-mount footprint that fits on two-layer boards with careful fan-out of the supply and charge-pump capacitor pins. Receiver hysteresis is specified at 500 mV, providing noise immunity on the RS-232 receive lines without external Schmitt-trigger buffers — useful in electrically noisy environments like motor-drive cabinets or factory-floor cabling.
The device is ROHS3 compliant, meeting the EU RoHS directive without exemptions for lead in solder or other restricted substances.
