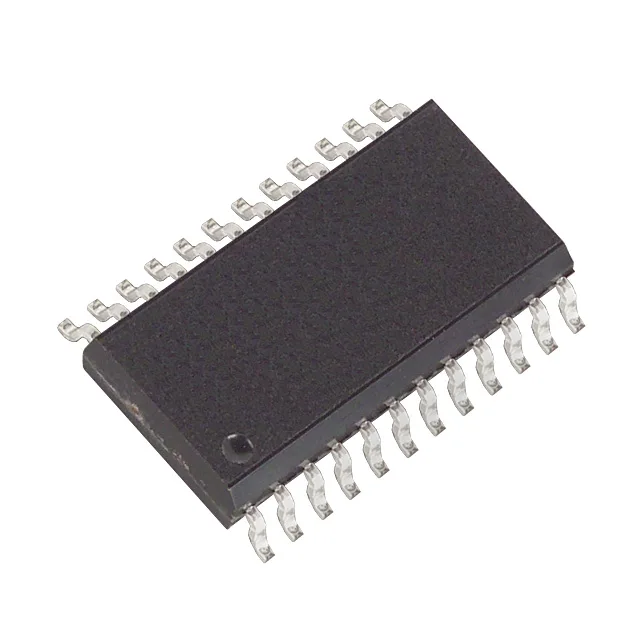

Analog Devices MAX208CWG+T RS232 transceiver, full duplex, 4 drivers/4 receivers, 120kbps data rate, 4.5V-5.5V supply, 24-SOIC package.
| Parameter | Value |
|---|---|
| Type | Transceiver |
| Mounting type | Surface Mount |
| Voltage | 4.5V ~ 5.5V |
| Protocol | RS232 |
| Operating temperature | 0°C ~ 70°C |
| Duplex | Full |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Data rate | 120Kbps |
| Case | 24-SOIC (0.295\", 7.50mm Width) |
| Receiver hysteresis | 500 mV |
| Number of drivers (Receivers) | 4/4 |
The MAX208CWG+T is a full-duplex RS232 transceiver integrating four drivers and four receivers in a single 24-SOIC package — a drop-in for legacy serial ports that need to convert 5V logic levels to RS232 voltage swings without external level shifters. Rated for a 120kbps data rate, this part covers standard UART speeds up to 115.2kbps with margin; the 500 mV receiver hysteresis filters out noise on long cable runs, reducing false start-bit detection.
It is a full-duplex RS232 transceiver with four drivers and four receivers, operating from a 4.5V to 5.5V supply at 120kbps data rate.
