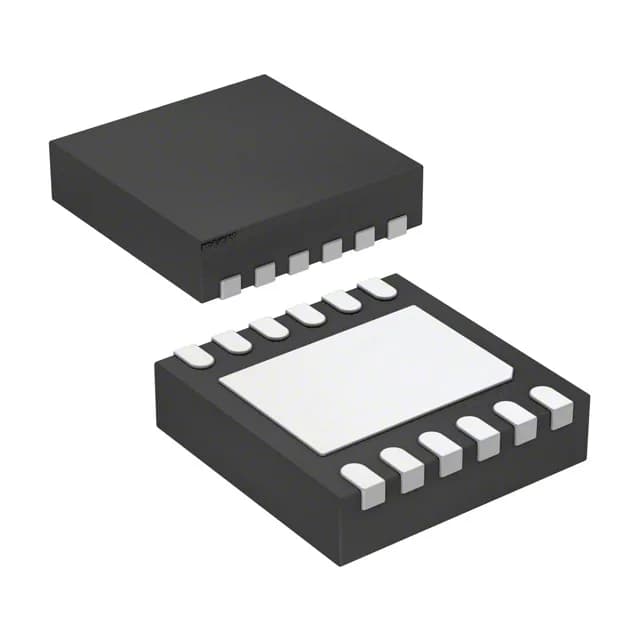

Analog Devices MAX20075DATCA/V+ — Logic ICs
Analog Devices

MAX20075DATCA/V+ Buck Regulator, 600mA, AEC-Q100, 3.5-40V

MPNMAX20075DATCA/V+
End of Life

Analog Devices MAX20075DATCA/V+, Automotive Grade, Step-Down Buck Regulator, Adjustable Output, 600mA, 3.5V to 40V Input, 2.1MHz Switching, -40°C to 125°C, 12-TDFN (3x3) Surface Mount Package.

$3.51Ref. price · indicative, final on quote
MAX20075DATCA/V+ datasheet
Packaging12-WFDFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX20075DATCA/V+ Technical Specifications
ParameterValue
Output typeAdjustable
Mounting typeSurface Mount
Voltage - input3.5V
Voltage - output10V
Voltage - output (Min (Fixed))1V
Current - output600mA
Frequency2.1MHz
Number of outputs1
Operating temperature-40°C ~ 125°C
GradeAutomotive
PackageTray
FunctionStep-Down
TopologyBuck
QualificationAEC-Q100
Case12-WFDFN Exposed Pad
Output configurationPositive
Synchronous rectifierYes

Product details

Automotive-grade step-down for harsh environments

The Analog Devices MAX20075DATCA/V+ is a monolithic step-down (buck) switching regulator designed for automotive and industrial power rails that must survive wide input swings and high ambient temperatures. It delivers up to 600 mA from a 3.5 V to 40 V input, with an adjustable output from 1 V to 10 V. The 2.1 MHz switching frequency keeps the inductor and output capacitor small, and the synchronous rectifier eliminates the external Schottky diode, saving board area and improving efficiency.

Wide input range and thermal capability

The 3.5 V minimum input allows operation from a 5 V rail or a battery during cold-crank conditions, while the 40 V maximum handles load dump and 24 V truck systems without external clamping.

Lifecycle and compliance

The AEC-Q100 qualification is documented, supporting PPAP submissions for tier-one automotive programs.

Frequently asked questions

What is the maximum output current of MAX20075DATCA/V+?

The maximum output current is 600 mA.

Is MAX20075DATCA/V+ AEC-Q100 qualified?

Yes, it is AEC-Q100 qualified, making it suitable for automotive applications.
