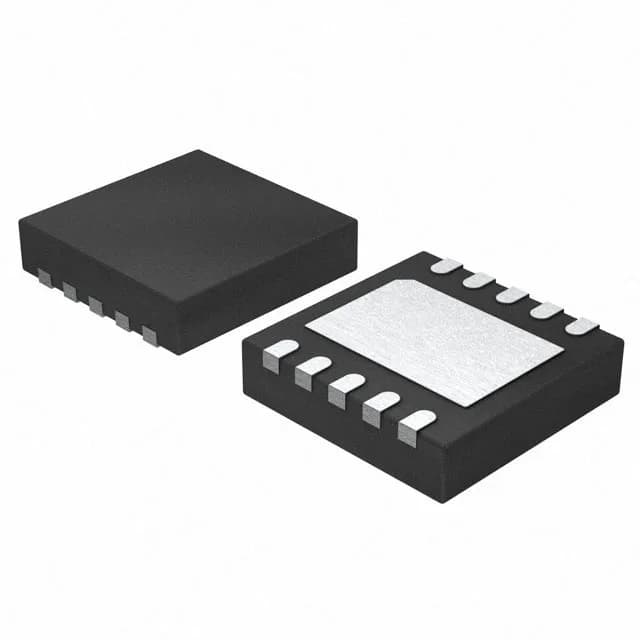

Analog Devices MAX20019ATBA/V+T — DC-DC Power Modules
Analog Devices

MAX20019ATBA/V+T Automotive Buck Regulator, Dual 500mA

MPNMAX20019ATBA/V+T
End of Life

Maxim MAX20019ATBA/V+T, Series Automotive AEC-Q100, Step-Down, Buck, Fixed Output, Dual 500mA, 3.2MHz, 10-TDFN-EP (2x3), -40°C to 125°C.

$4.2Ref. price · indicative, final on quote
MAX20019ATBA/V+T datasheet
Packaging10-WFDFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX20019ATBA/V+T Technical Specifications
ParameterValue
SeriesAutomotive, AEC-Q100
Output typeFixed
Mounting typeSurface Mount
Voltage - input3.5V
Voltage - output (Min (Fixed))3.3V, 1.8V
Current - output500mA, 500mA
Frequency3.2MHz
Number of outputs2
Operating temperature-40°C ~ 125°C
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Down
TopologyBuck
Case10-WFDFN Exposed Pad
Output configurationPositive
Synchronous rectifierNo

Product details

Dual-output automotive buck for ECU rails

The MAX20019ATBA/V+T is a dual-channel step-down (buck) switching regulator. It delivers two fixed output voltages — 3.3 V on one channel and 1.8 V on the other — each rated for 500 mA continuous output current. The part operates from a 3.5 V to 17 V input bus.

Switching frequency and external component sizing

The 3.2 MHz switching frequency is fixed; there is no SYNC pin for external clock synchronisation. The part does not include internal synchronous rectification — an external Schottky diode per channel is required in the BOM.

Lifecycle and compliance

The MAX20019ATBA/V+T is listed as Active in production and ROHS3 compliant. For BOM planning, this part is currently available through independent distribution channels and is quoted to order against an RFQ.

Frequently asked questions

Does MAX20019ATBA/V+T have synchronous rectification?

No. Synchronous rectification is not implemented, so an external Schottky diode is required per output channel for the low-side rectifier function.

What is the output current of MAX20019ATBA/V+T?

Each of the two outputs is rated for 500 mA continuous current, providing a combined 1 A total output capability from the dual channels.
