Analog Devices MAX17491GTA+T — DC-DC Power Modules
Analog Devices

MAX17491GTA+T Half-Bridge Gate Driver, 2A/2.7A, 8-TQFN

MPNMAX17491GTA+T
End of Life

Analog Devices MAX17491GTA+T half-bridge gate driver, N-channel MOSFET, non-inverting, synchronous, 2 drivers, 2A source / 2.7A sink peak, 8-WQFN exposed pad, -40°C to 150°C.

$3.19Ref. price · indicative, final on quote
Packaging8-WQFN Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX17491GTA+T Technical Specifications
ParameterValue
Gate typeN-Channel MOSFET
Input typeNon-Inverting
Channel typeSynchronous
Mounting typeSurface Mount
Voltage4.2V ~ 5.5V
High side voltage - max (Bootstrap)24 V
Current - peak output (Source, sink)2A, 2.7A
Operating temperature-40°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Case8-WQFN Exposed Pad
Number of drivers2
Driven configurationHalf-Bridge
Rise (Fall time)10ns, 8ns

Product details

Half-bridge gate driver for N-channel MOSFETs

The MAX17491GTA+T is a half-bridge gate driver from Analog Devices, designed to drive two N-channel MOSFETs in a synchronous configuration. It accepts a non-inverting input and delivers 2A peak source current and 2.7A peak sink current per channel. The supply voltage range is 4.2V to 5.5V, and the bootstrap pin supports a high-side voltage up to 24V, covering the typical bias rail for a 12V or 24V bus converter. Rise and fall times are 10 ns and 8 ns typical, respectively, which keeps switching losses low in the 100 kHz–1 MHz range common for isolated DC-DC converters and point-of-load regulators.

Package and temperature grade

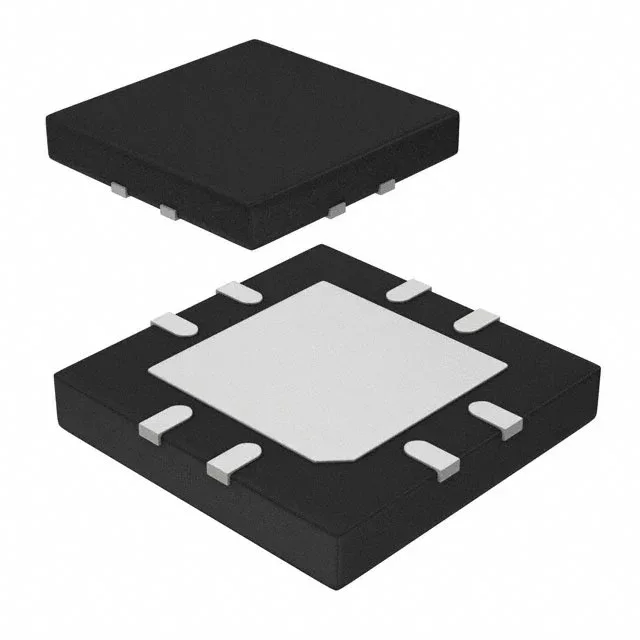

Housed in an 8-WQFN with exposed pad (supplier package 8-TQFN, 3x3 mm), the part is surface-mount and intended for reflow assembly.

Frequently asked questions

What is the peak output current of MAX17491GTA+T?

The peak output current is 2A source and 2.7A sink per channel, sufficient to drive the gate charge of medium-power MOSFETs in half-bridge topologies.
