Analog Devices MAX16823AUE/V+T — DC-DC Power Modules
Analog Devices

MAX16823AUE/V+T Analog Devices LED Driver, 3-ch 100mA

MPNMAX16823AUE/V+T
End of Life

Analog Devices MAX16823AUE/V+T, Automotive AEC-Q100, Linear LED Driver, 3 outputs, 100 mA per channel, PWM dimming, 5.5-40 V supply, 39.3 V output, 16-TSSOP-EP, Surface Mount, Tape & Reel.

$5.75Ref. price · indicative, final on quote
MAX16823AUE/V+T datasheet
Packaging16-TSSOP (0.173", 4.40mm Width) Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX16823AUE/V+T Technical Specifications
ParameterValue
TypeLinear
SeriesAutomotive, AEC-Q100
Mounting typeSurface Mount
Voltage - output39.3V
Voltage5.5V
Current - output (Channel)100mA
Number of outputs3
Operating temperature-40°C ~ 125°C (TA)
DimmingPWM
PackageTape & Reel (TR); Cut Tape (CT)
ApplicationsAutomotive, Backlight, Lighting

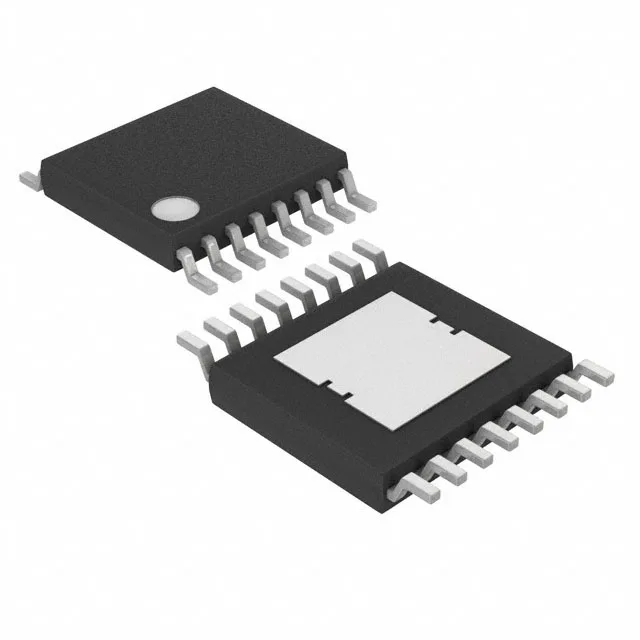

Case16-TSSOP (0.173\", 4.40mm Width) Exposed Pad
Internal switchYes

Product details

3-channel linear LED driver for automotive lighting strings

The MAX16823AUE/V+T is a linear LED driver from Analog Devices, delivering three independently controlled outputs at 100 mA per channel. It operates from a 5.5 V to 40 V supply rail and can drive LED strings up to 39.3 V, making it suitable for automotive exterior and interior lighting where the battery voltage swings from cold-crank to load-dump. PWM dimming is integrated on-chip, allowing brightness control via an external PWM signal without additional components. The linear topology keeps switching noise out of the LED current path, which matters for rear-combination lamps and daytime running lights where conducted emissions targets are tight.

AEC-Q100 qualification and thermal design

A 105 °C dashboard ambient on a summer day still leaves margin before the die hits the abs-max junction limit. The 16-TSSOP-EP package includes an exposed pad on the underside.
