Analog Devices MAX1644EAE+ — Interface & Transceivers
Analog Devices

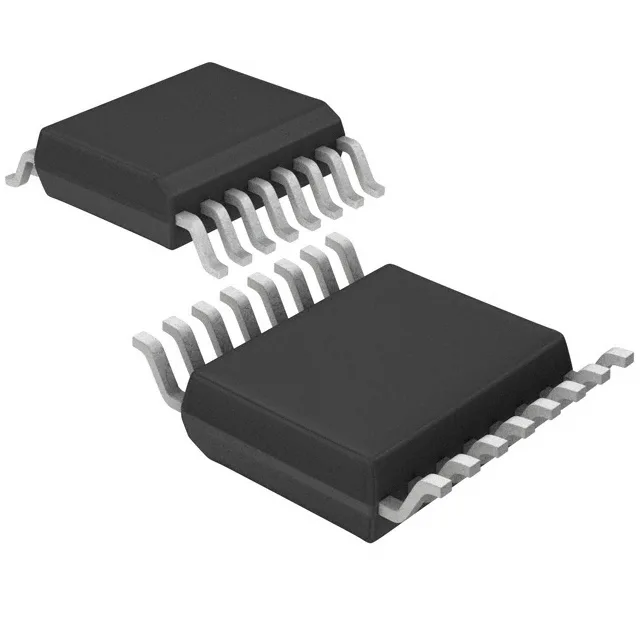

MAX1644EAE+ Buck Regulator, 2A, 16-SSOP, Active

MPNMAX1644EAE+
End of Life

Analog Devices MAX1644EAE+ step-down buck regulator, 2A output, adjustable 1.1V to 5.5V, up to 350kHz switching, synchronous rectification, 16-SSOP package, tube.

$13.07Ref. price · indicative, final on quote
Packaging16-SSOP (0.209", 5.30mm Width)
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX1644EAE+ Technical Specifications
ParameterValue
Output typeAdjustable (Programmable)
Mounting typeSurface Mount
Voltage - input5.5V
Voltage - output5.5V
Voltage - output (Min (Fixed))1.1V (2.525V, 3.33V)
Current - output2A
FrequencyUp to 350kHz
Number of outputs1
Operating temperature-40°C ~ 85°C (TA)
PackageTube
FunctionStep-Down
TopologyBuck
Case16-SSOP (0.209\", 5.30mm Width)
Output configurationPositive
Synchronous rectifierYes

Product details

Step-down regulator with synchronous rectification

The MAX1644EAE+ is a current-mode step-down (buck) switching regulator from Analog Devices, delivering up to 2A from a 3V to 5.5V input rail. It integrates synchronous rectification, which eliminates the external Schottky catch diode and improves efficiency at lower output voltages. Switching frequency runs up to 350 kHz, allowing a reasonable inductor size for the 2A output.

Output voltage and package fit

Output is adjustable (programmable) with a minimum fixed option of 1.1V, and preset taps at 2.525V and 3.33V — the external feedback divider sets the final voltage up to 5.5V.

Active production and compliance status

RoHS3 compliant (2011/65/EU + 2015/863), with no added REACH SVHC above threshold per the manufacturer's declaration.

Frequently asked questions

What is the output current and voltage range for MAX1644EAE+?

It delivers 2A continuous output with an adjustable range from 1.1V up to 5.5V, using an external feedback divider.

What package does MAX1644EAE+ come in?

It is supplied in a 16-lead SSOP package (0.209" body width, 5.30mm) on tube.

What compliance documentation does Analog Devices provide for MAX1644EAE+?

The part is ROHS3 compliant and the manufacturer provides a full RoHS certificate and material declaration upon request.
