Analog Devices MAX14824GTG+ — Interface & Transceivers
Analog Devices

MAX14824GTG+ Analog Devices IO-Link Transceiver, 230.4Kbps

MPNMAX14824GTG+
End of Life

Analog Devices MAX14824GTG+ IO-Link Transceiver, 1/1 Drivers/Receivers, 230.4Kbps, 9V~36V Supply, -40°C~105°C, 24-TQFN (4x4), Tube.

$11.27Ref. price · indicative, final on quote
Packaging24-WFQFN Exposed Pad
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX14824GTG+ Technical Specifications
ParameterValue
TypeTransceiver
Mounting typeSurface Mount
Voltage9V ~ 36V
ProtocolIO-Link
Operating temperature-40°C ~ 105°C
PackageTube
Data rate230.4Kbps
Case24-WFQFN Exposed Pad
Number of drivers (Receivers)1/1

Product details

Active IO-Link transceiver with wide supply range

The MAX14824GTG+: It operates from a 9V to 36V supply, which covers the typical 24V industrial sensor bus without needing an external regulator — the wide margin handles ground shifts and long cable drops that would brown out a narrower-range part.

Industrial temperature and IO-Link data rate

The IO-Link interface runs at 230.4Kbps — the standard COM3 data rate — so it drops into an existing IO-Link master port without renegotiating the baud rate.

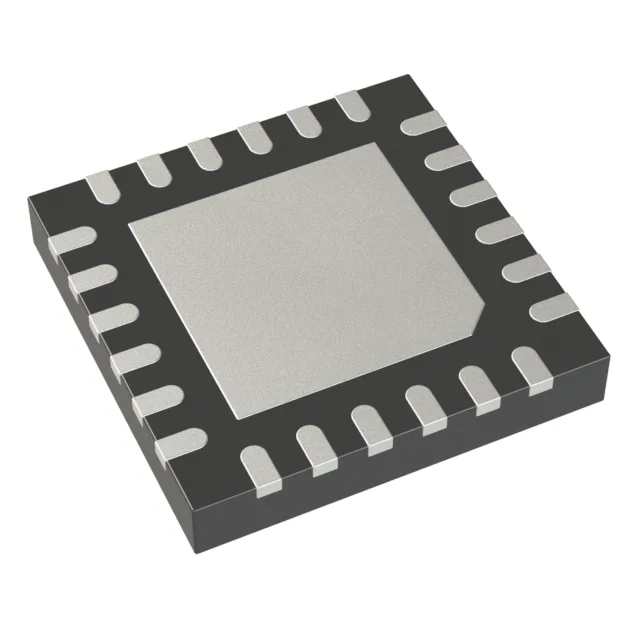

Housed in a 24-WFQFN exposed-pad package (supplier device package 24-TQFN, 4x4 mm), the part is surface-mount only. Supplied in tube format.

Frequently asked questions

Where can I buy the MAX14824GTG+ and get a quote?

Sourced through independent distribution.
