The MAX14727EWV+T: Operating supply range spans 3V to 28V, covering common 5V, 12V, and 24V rails — the 360µA typical supply current means the protection circuit itself draws negligible power in always-on systems. The wide input tolerance suits applications where the protected rail may see transients or voltage variation up to 28V without the IC itself latching up or exceeding abs-max.

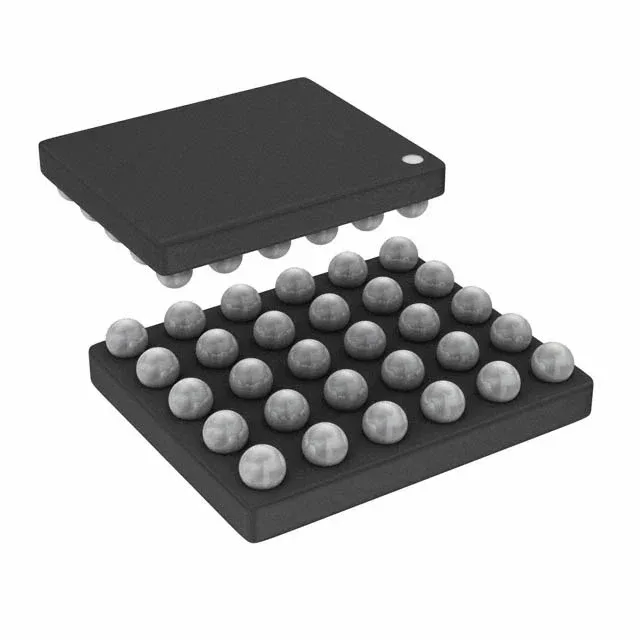

Housed in a 30-WFBGA / WLBGA (2.54 x 2.2 mm body) — the fine-pitch BGA footprint demands a controlled reflow profile per JEDEC J-STD-020 and post-solder X-ray inspection to verify ball wetting and voiding under the die.
