Analog Devices MAX14636CVB+T — Microcontrollers & Processors (MCU / MPU / DSP)
Analog Devices

MAX14636CVB+T USB Charger Detection IC, 150µA, 3.5-5.5V

MPNMAX14636CVB+T
End of Life

Analog Devices MAX14636CVB+T USB Charger Detection IC, 150µA supply current, 3.5V ~ 5.5V supply voltage, 10-XFQFN package, Surface Mount, Tape & Reel (TR); Cut Tape (CT).

$2.18Ref. price · indicative, final on quote
MAX14636CVB+T datasheet
Packaging10-XFQFN
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX14636CVB+T Technical Specifications
ParameterValue
Mounting typeSurface Mount
Voltage3.5V ~ 5.5V
Current - supply150µA
Operating temperature0°C ~ 70°C
PackageTape & Reel (TR); Cut Tape (CT)
ApplicationsUSB, Peripherals
Case10-XFQFN

Product details

USB charger detection IC — 150 µA supply, 3.5–5.5 V input

The MAX14636CVB+T is a dedicated USB charger detection IC from Analog Devices, designed to identify the charging protocol on a USB port and report the available current capability to the host system.

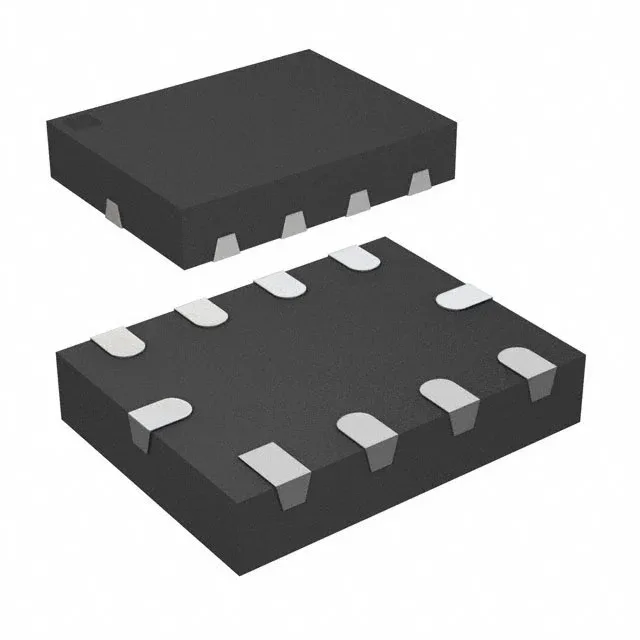

10-XFQFN package — 1.6 × 2.1 mm footprint

Housed in a 10-lead XFQFN package (1.6 × 2.1 mm body), the MAX14636CVB+T fits on the cramped edge of a USB-C or micro-USB port PCB where board real estate is at a premium. Available on Tape & Reel (TR) or Cut Tape (CT) for pick-and-place assembly in volume or prototype runs.

Frequently asked questions

What is the MAX14636CVB+T used for?

It is a USB charger detection IC — it identifies the charging protocol (standard downstream port, charging downstream port, dedicated charging port) on a USB connector and reports the available current to the system, so the device can draw the maximum safe charge current without negotiating.
