Dual 10-bit ADC with 40 Msps — what it delivers

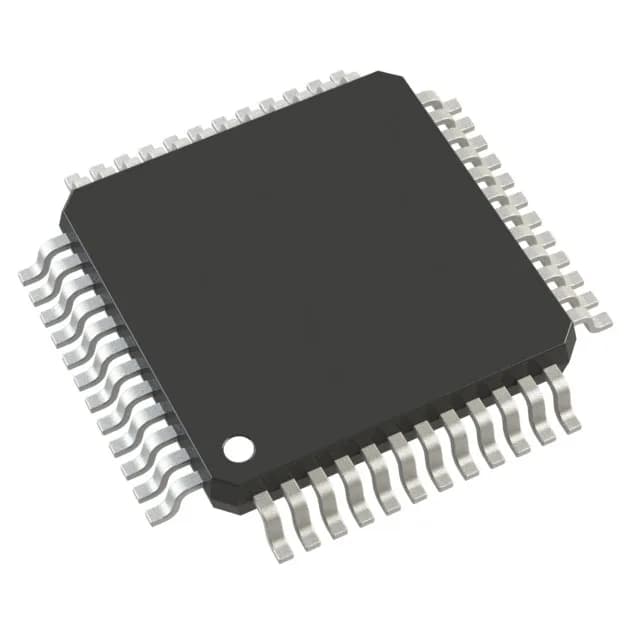

The Maxim Integrated MAX1183ECM+D is a 10-bit pipelined ADC that packs two converters in a single 48-TQFP Exposed Pad package, each sampling simultaneously at 40 Msps. It accepts both differential and single-ended inputs through a shared S/H front end, and the parallel data interface keeps the digital side simple. The analog and digital supplies share a common 2.7 V to 3.6 V range. With an industrial temperature range of -40°C to 85°C, it fits baseband I/Q digitization, medical imaging, and communications receivers where two channels must be captured in lockstep.
Lifecycle and compliance
The MAX1183ECM+D carries an active lifecycle status, so it remains a current-production line item suitable for both new designs and ongoing BOMs. It is ROHS3 compliant, which covers the majority of global regulatory requirements for lead-free assembly.
