12-phase capability and what it means for the power stage
Twelve output phases interleaved at 60° per phase reduce ripple current. Each phase handles roughly one-twelfth of the total load current.
Control features and configuration
Control features include current limit, enable, frequency control, phase control, and soft start. The controller does not require external programming or firmware — it is a pure analog controller configured through resistor dividers, timing capacitors, and feedback compensation. Clock sync input allows the switching frequency to be locked to an external clock, which helps manage EMI in noise-sensitive systems or synchronize multiple converters in a PolyPhase array.
Package and mounting

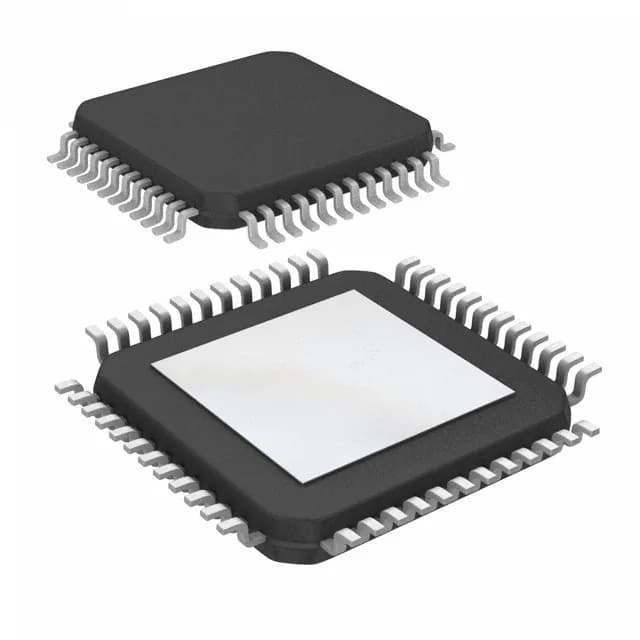

The part comes in a 48-lead LQFP with an exposed pad (48-eLQFP, 7x7 mm body). The exposed pad must be soldered to the PCB ground plane for thermal management — the 150°C TJ rating is only achievable with adequate pad-to-board heat sinking. Surface-mount assembly is straightforward with standard reflow profiles.
Lifecycle and compliance
The LTC3871HLXE-1#PBF is marked Active with no last-time-buy notice. ROHS3 compliant per. No PPAP documentation is cited in the ledger — if your program requires AEC-Q100 or PPAP, confirm with the manufacturer before committing the BOM. The part is available through independent distribution and quoted to order against an RFQ.
