16-bit dual multiplying DAC for precision analog output

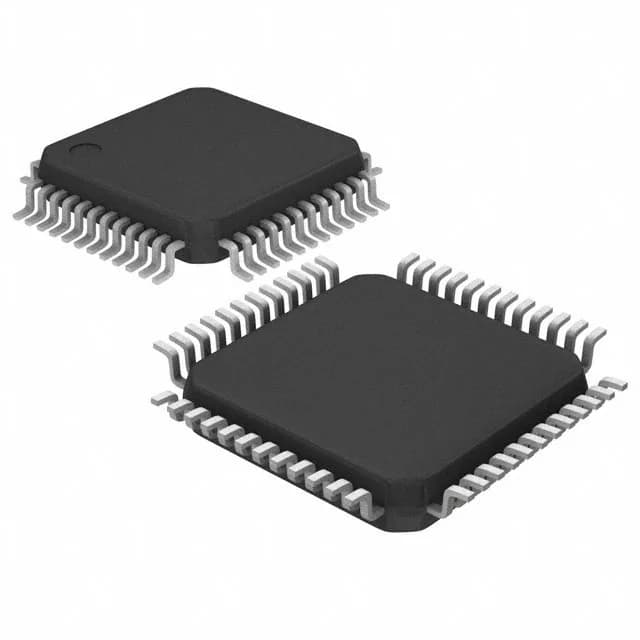

The Analog Devices LTC2752BCLX#PBF is a 16-bit dual multiplying DAC with current-unbuffered output, part of the SoftSpan™ series. Two DACs in a 48-LQFP package, each settling to 16 bits in 2 µs typical — fast enough for audio-rate waveform generation, servo-loop setpoints, and automated test equipment channel cards. Multiplying architecture means the output is the product of the digital code and an external reference voltage, so the part can scale an AC signal or act as a digitally controlled attenuator. Differential output simplifies driving balanced loads or generating bipolar swings with an external op-amp stage.
Supply range and reference — single-supply flexibility
Analog and digital supplies both run from 2.7 V to 5.5 V. Reference type is external — the user provides the voltage that defines the full-scale output current. SPI data interface keeps pin count low.
Lifecycle — active, no end-of-life concern
LTC2752BCLX#PBF carries an active lifecycle status. No last-time-buy notice, no NRND flag. It can be specified into new designs with confidence that production supply will continue. The #PBF suffix indicates lead-free (Pb-free) finish.
