Analog Devices LTC2292CUP#PBF — Discrete Semiconductors
Analog Devices

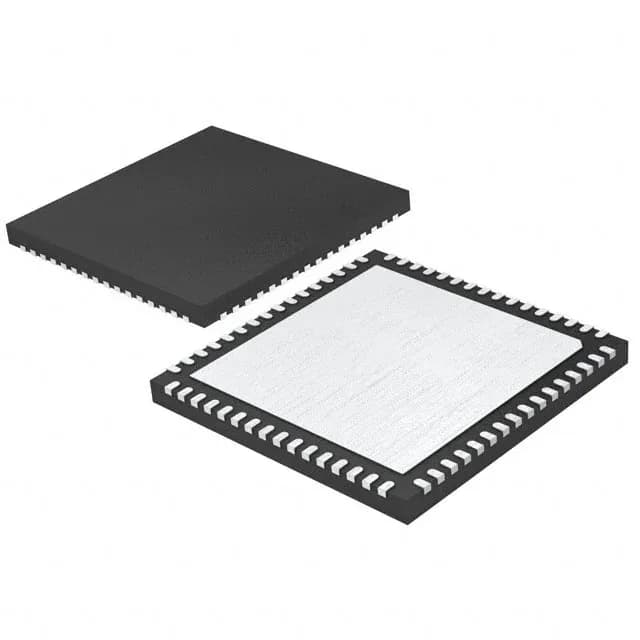

LTC2292CUP#PBF 12-bit 40 MSps Dual ADC, Pipelined, 64-QFN

MPNLTC2292CUP#PBF
End of Life

Analog Devices LTC2292CUP#PBF, 12-bit pipelined ADC, dual 40 MSps, differential/single-ended input, parallel interface, 64-WFQFN exposed pad, 0°C to 70°C.

$30.0Ref. price · indicative, final on quote
LTC2292CUP#PBF datasheet
Packaging64-WFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LTC2292CUP#PBF Technical Specifications
ParameterValue
Input typeDifferential, Single Ended
Mounting typeSurface Mount
Reference typeExternal, Internal
Voltage - supply, analog2.7V ~ 3.4V
Voltage - supply, digital2.7V ~ 3.4V
Number of inputs2
InterfaceParallel
Operating temperature0°C ~ 70°C
PackageTube
FeaturesSimultaneous Sampling
ArchitecturePipelined
ConfigurationS/H-ADC
Number of bits12
Case64-WFQFN Exposed Pad
Ratio - s (H:ADC)1:1
Number of a (D converters)2
Sampling rate (Per second)40M

Product details

Dual 12-bit 40 MSps ADC in a 64-QFN — what this part is for

The LTC2292CUP#PBF from Analog Devices is a 12-bit dual-channel pipelined ADC that samples each channel simultaneously at 40 MSps. It accepts both differential and single-ended inputs through a shared S/H-ADC front end, and outputs data over a parallel interface.

Temperature grade and environment

Rated for 0°C to 70°C, this is a commercial-temperature part. It belongs in lab instrumentation, bench-top test gear, base-station receiver cards in climate-controlled shelters, or any indoor rack where the ambient stays above freezing. Do not spec it for a motor-drive cabinet or an outdoor enclosure without active cooling — the -40°C to 85°C AD9204BCPZ-40 is the industrial-grade pick if the environment pushes past 70°C.

Sourcing and lifecycle

The LTC2292CUP#PBF carries an Active lifecycle status and is ROHS3 compliant. No last-time-buy or end-of-life notice is on record.

Frequently asked questions

What is the sampling rate of LTC2292CUP#PBF?

The LTC2292CUP#PBF samples each of its two channels simultaneously at 40 MSps.

Is there a second source or equivalent for LTC2292CUP#PBF?

No direct pin-compatible second source is listed. The AD9204BCPZ-40 is a 10-bit dual 40 MSps pipelined ADC with simultaneous sampling but runs on a 1.8 V supply and covers -40°C to 85°C — it is a functional alternative only if the resolution and supply voltage can change. The AD9200JRSZ is a single-channel 10-bit 20 MSps part and is not a dual-channel replacement.
