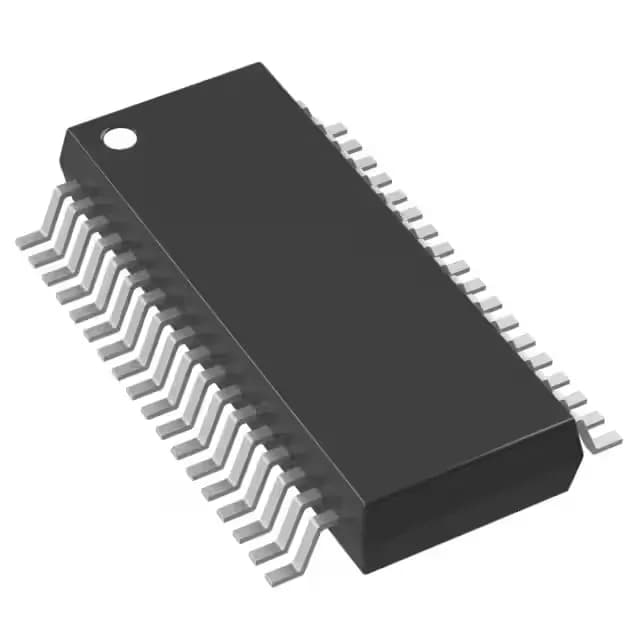

LTC1960CG#TRPBF Smart Battery Charger IC, 2-Cell, SPI

MPNLTC1960CG#TRPBF
End of Life

Analog Devices LTC1960CG#TRPBF smart battery charger IC, 2-cell, SPI interface, over-current protection, 28V max supply, 0°C to 70°C, 36-SSOP package, Tape & Reel.

$18.48Ref. price · indicative, final on quote
LTC1960CG#TRPBF datasheet
Packaging36-SSOP (0.209", 5.30mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LTC1960CG#TRPBF Technical Specifications
ParameterValue
Mounting typeSurface Mount
Voltage28V
InterfaceSPI
Operating temperature0°C ~ 70°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
Case36-SSOP (0.209\", 5.30mm Width)
Number of cells2
Fault protectionOver Current
Battery chemistrySmart Batteries

Product details

Smart charger for 2-cell SMBus packs

The LTC1960CG#TRPBF from Analog Devices is a smart battery charger IC designed for 2-cell packs using the Smart Batteries (SMBus) protocol. It handles charge management for a pair of series cells, with an SPI interface for host communication and over-current fault protection. The part operates from a supply up to 28V and is specified over the 0°C to 70°C commercial temperature range.

Supply headroom and protection

The 28V max supply voltage gives enough headroom to charge a 2-cell stack from a typical 19V or 24V input rail. Over-current protection is built in, so an external fuse or current-sense resistor may be simplified on the BOM. The SPI bus lets a host microcontroller set charge parameters and monitor status — useful for systems that log battery health or enforce charge profiles.

Lifecycle and compliance

The LTC1960CG#TRPBF is listed as Active — no end-of-life notice, no last-time-buy window. It is ROHS3 compliant, so it passes the material declaration for EU and other regulated markets. The Tape & Reel variant (TR suffix) is the standard production reel; Cut Tape (CT) is also available for prototyping or small runs.

Frequently asked questions

Is LTC1960CG#TRPBF RoHS compliant?

Yes, the LTC1960CG#TRPBF is ROHS3 Compliant, meeting the latest RoHS directive requirements.

How many cells does LTC1960CG#TRPBF support?

The LTC1960CG#TRPBF supports 2 cells in series, designed for Smart Batteries (SMBus) packs.

Can LTC1960CG#TRPBF charge lithium-ion batteries?

The part is specified for Smart Batteries chemistry, which typically includes lithium-ion packs that follow the SMBus protocol. It is not a general-purpose multi-chemistry charger; the charge algorithm is managed through the SMBus interface.

What is the closest functional equivalent to LTC1960CG#TRPBF?

The LTC1759CG#PBF is a close functional peer — also a smart battery charger from Analog Devices, but it uses an I²C interface instead of SPI and supports only 1 cell. The LTC1960CG#TRPBF handles 2 cells and uses SPI, so a firmware and hardware change is needed to swap.
