The LT3724EFE#TRPBF from Analog Devices is a current-mode switching regulator controller that handles buck, boost, and SEPIC topologies from a single part. It drives an external N-channel MOSFET at a fixed 200 kHz switching frequency, covering input rails from 4 V up to 60 V. The controller outputs a positive or negative regulated voltage — useful when the same board design must support inverting or non-inverting rails. Rated for junction temperatures from -40°C to 125°C, it fits into automotive under-hood, industrial motor-drive, and outdoor telecom power stages where ambient heat is a given.
200 kHz fixed switching — what it means on the bench
The 200 kHz switching rate is fixed — no external sync, no frequency foldback. That simplifies the magnetics design because the inductor and transformer values are predictable.
Wide input range — 4 V to 60 V
The 4 V to 60 V supply range covers most unregulated DC buses. The 60 V upper limit means the controller itself survives transients without a pre-regulator.

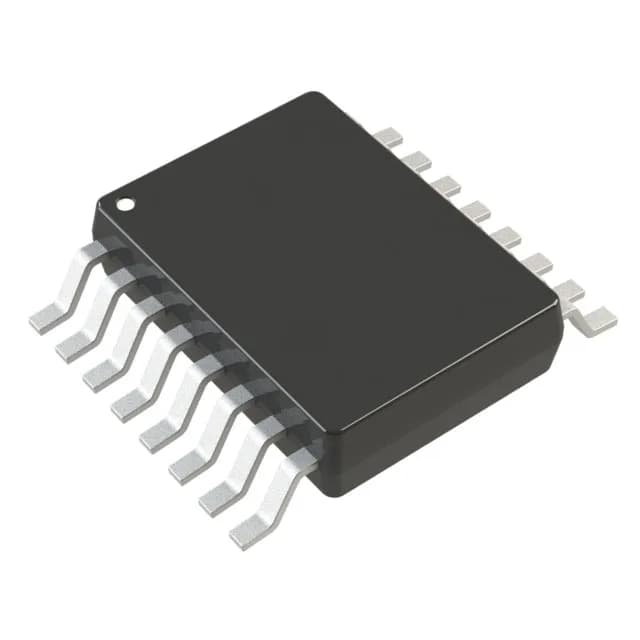

Package and rework — 16-TSSOP with exposed pad
The 16-TSSOP-EP package has an exposed pad underneath that must be soldered to a thermal land on the PCB. That pad is the main heat path out of the controller.
Listed as Active on the manufacturer's lifecycle status, with ROHS3 compliance. No NRND or last-time-buy notice is recorded for this order code. The part is sourced through independent distribution and quoted to order against an RFQ.
