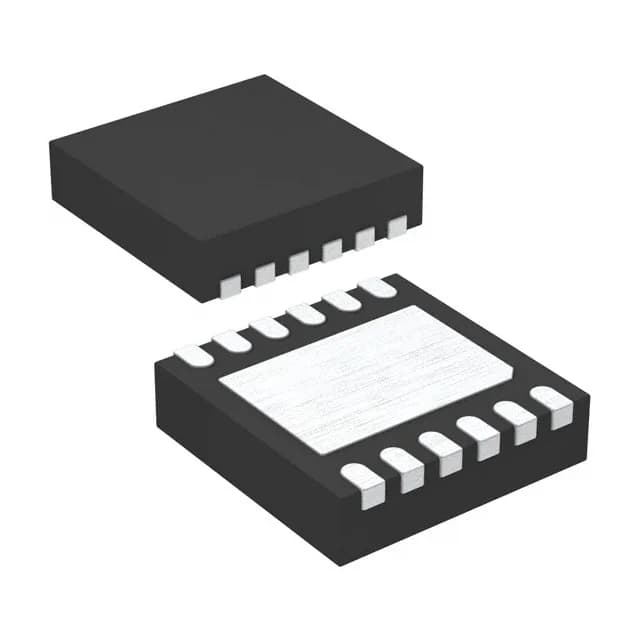

LT3652HVEDD#PBF Battery Charger IC, Multi-Chem, 2A Max

MPNLT3652HVEDD#PBF
End of Life

Analog Devices LT3652HVEDD#PBF, Multi-Chemistry battery charger IC, 4-5 cells, 2A max charge current, 34V max supply, -40°C to 125°C, 12-WFDFN Exposed Pad, Tube.

$10.29Ref. price · indicative, final on quote
LT3652HVEDD#PBF datasheet
Packaging12-WFDFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LT3652HVEDD#PBF Technical Specifications
ParameterValue
Mounting typeSurface Mount
Battery pack voltage18V (Max)
Voltage34V
Current - chargingConstant - Programmable
Charge current - max2A
Operating temperature-40°C ~ 125°C (TJ)
PackageTube
Case12-WFDFN Exposed Pad
Number of cells4 ~ 5
Battery chemistryMulti-Chemistry
Programmable featuresCurrent, Timer

Product details

2 A charge current — what it means for your BOM

The 2 A maximum charge current drives the thermal design. In the 12-DFN package with exposed pad, a copper pour on the PCB pulls heat out of the die at full current.

Lifecycle and sourcing reality

The LT3652HVEDD#PBF is listed as Active with ROHS3 compliance. That means you can qualify it into a new design without worrying about an imminent EOL. The datasheet (LT3652HVEDD#PBF datasheet) is available from the manufacturer's site or through your distributor's document portal.

Frequently asked questions

What is the charging current for LT3652HVEDD#PBF?

The maximum charge current is 2 A, programmable via an external resistor. The constant-current loop lets you set any value below that limit.

Is LT3652HVEDD#PBF compatible with Li-ion batteries?

Yes — the multi-chemistry charger handles Li-ion, LiFePO4, lead-acid, and other chemistries. The float voltage is set by an external resistor divider, so you can configure it for 4.2 V/cell Li-ion or 3.6 V/cell LiFePO4.

What is the equivalent of LT3652HVEDD#PBF?

The closest functional equivalent sharing the same die is the LT3652HVEMSE#PBF, which uses a 16-lead MSOP with exposed pad (MSE package) instead of the 12-DFN. The electrical specs are identical — same 2 A charge current, same 34 V input, same temperature range — but the footprint differs, so a board change is needed to swap between them.
