23 MHz GBW and 50 V/µs slew rate for fast signal conditioning
The LT1216CN#PBF: With a 23 MHz gain-bandwidth product and 50 V/µs slew rate, this amplifier handles signals up to several megahertz without significant phase shift or slew-induced distortion. The 360 nA input bias current and 250 µV input offset voltage suit precision DC-coupled stages where drift matters — for example, a thermocouple amplifier or photodiode transimpedance front-end. Each channel delivers 50 mA output current, enough to drive coaxial cables or low-impedance loads in test equipment. The supply span from 2.5 V to 36 V allows operation from a single lithium cell or split ±15 V rails common in industrial analog designs.
Through-hole 14-DIP for prototyping and legacy support

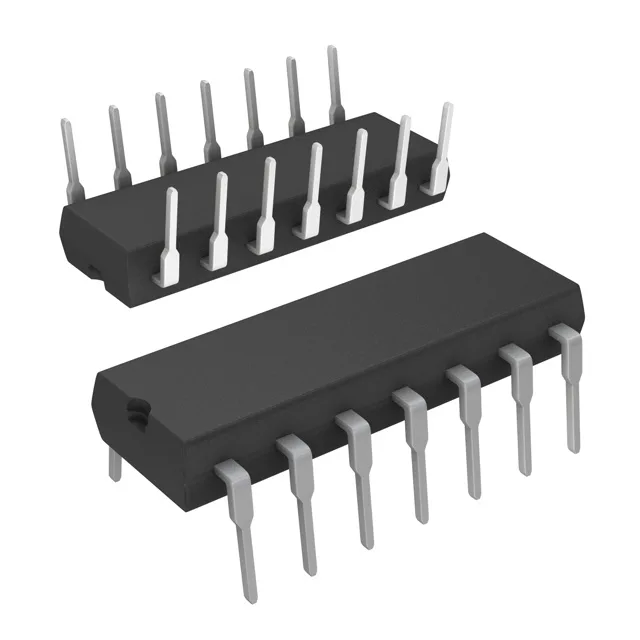

Housed in a 14-pin DIP with 0.300-inch row spacing (7.62 mm), the LT1216CN#PBF fits standard breadboards, prototyping sockets, and through-hole PCB layouts. The PDIP package is straightforward to hand-solder and rework, making it a practical choice for low-volume builds, lab instruments, or repairs on legacy boards that already carry DIP footprints.
Commercial temperature range and compliance
Rated for 0°C to 70°C operating temperature, this part targets indoor commercial and industrial environments — not extended or automotive temperature ranges. It is ROHS3 compliant, and the manufacturer provides full RoHS and REACH documentation on request.
