Buffer selection for high-speed signal drive
The LT1010CT#06PBF is a single-circuit buffer amplifier from Analog Devices, designed to drive capacitive or low-impedance loads without sacrificing signal integrity. Its 75 V/µs slew rate means the output can track a 10 V step in about 133 ns — fast enough to preserve the edge rate of a high-speed analog waveform or a digital control signal before it reaches a long cable or a large filter capacitor. With a gain-bandwidth product of 20 MHz, the buffer maintains closed-loop gain flatness across the audio band and into the low-MHz range, making it a candidate for video distribution, waveform generation, or line-driving stages where the load capacitance would otherwise cause instability in a general-purpose op-amp.
Output drive and supply headroom
Rated output current of 150 mA per channel gives the LT1010CT#06PBF enough headroom to drive a 50 Ω load to ±7.5 V, or to charge a 1 nF load at the full slew rate without current limiting. The supply current draw is 5 mA quiescent — the ratio of output capability to idle current means the thermal rise in the TO-220-5 package stays manageable even when driving continuous AC signals into moderate loads. Supply span from 4.5 V to 40 V total means the buffer works off a single 5 V rail for logic-level signals or a ±15 V supply for industrial analog front-ends. The wide range also allows the same BOM line to serve multiple product variants that share a board layout but run different supply voltages.
Input bias and temperature range
Input bias current is 500 µA — high compared to a JFET or CMOS buffer, but expected for a bipolar output stage that prioritises slew rate and output impedance. This matters when the buffer is DC-coupled to a high-impedance source: the bias current flowing through the source resistance creates an offset voltage that must be budgeted into the system error. For a 1 kΩ source, the offset is 500 mV; for a 10 Ω source it is 5 mV. Operating temperature range is 0 °C to 100 °C — commercial/industrial grade, not extended. The buffer is specified for controlled indoor environments or equipment where the ambient stays above freezing and below the boiling point of water. For cold-start or under-hood applications, the 0 °C lower limit is a hard floor.
Package and procurement posture

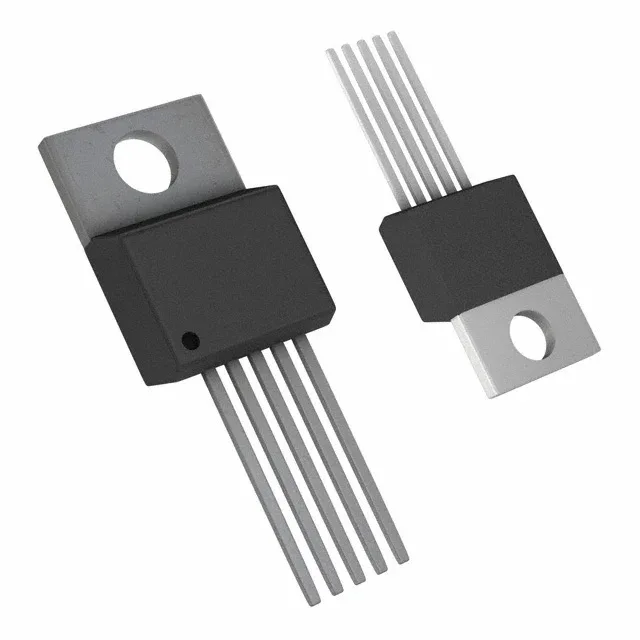

Housed in a TO-220-5 through-hole package with a Flow 6 variant lead form — the same 5-pin footprint as a standard TO-220 but with the centre pin trimmed or formed for specific socket or heatsink interfaces. The tube packaging (50 pieces typical) suits manual assembly or low-volume rework; no tape-and-reel option is listed. Lifecycle status is active, ROHS3 compliant.
