Analog Devices LMX358AKA+ — Interface & Transceivers
Analog Devices

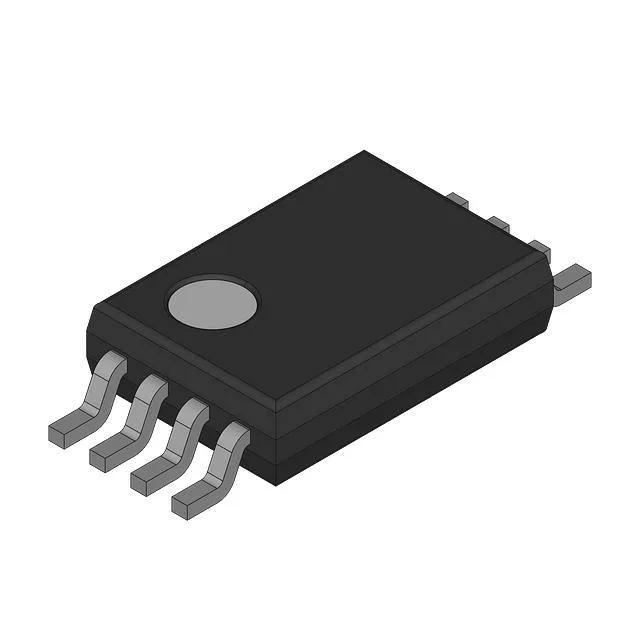

LMX358AKA+ SOT-23-8 Dual Op-Amp, Rail-to-Rail, 1.3 MHz

MPNLMX358AKA+
End of Life

Analog Devices LMX358AKA+ dual general-purpose op-amp, SOT-23-8, rail-to-rail output, 1.3 MHz gain bandwidth, 1V/µs slew rate, 240 µA supply per channel, -40°C to 125°C.

$1.41Ref. price · indicative, final on quote
LMX358AKA+ datasheet
PackagingSOT-23-8
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LMX358AKA+ Technical Specifications
ParameterValue
Output typeRail-to-Rail
Mounting typeSurface Mount
Amplifier typeGeneral Purpose
Voltage - input offset1 mV
Voltage - supply span2.3 V
Current - supply240µA (x2 Channels)
Current - input bias18 nA
Current - output (Channel)28 mA
Operating temperature-40°C ~ 125°C
Gain bandwidth product1.3 MHz
PackageBulk
Slew rate1V/µs
CaseSOT-23-8
Number of circuits2

Product details

Dual op-amp in SOT-23-8 — 1.3 MHz GBWP, rail-to-rail output

The LMX358AKA+ from Analog Devices packages two general-purpose op-amps into a SOT-23-8 footprint, with a 1.3 MHz gain-bandwidth product and rail-to-rail output stage. The 1V/µs slew rate and 240 µA supply per channel suit it for low-power signal conditioning in battery-powered or space-constrained boards where a single 8-pin package replaces two separate amplifiers.

Supply range and output drive — 2.3 V to 7 V, 28 mA per channel

The 1 mV typical input offset and 18 nA input bias keep errors low in precision DC circuits.

The SOT-23-8 surface-mount package fits standard reflow profiles, and the part is ROHS3 compliant.

Frequently asked questions

What compliance documentation does Analog Devices provide for the LMX358AKA+?

The LMX358AKA+ is ROHS3 compliant. No UL or IEC certification is listed in the manufacturer's standard documentation for this part.
