Analog Devices ICM7218AIQI+ LED Display Driver, 8-Digit

MPNICM7218AIQI+
End of Life

Analog Devices ICM7218AIQI+ LED display driver, 8-digit 7-segment, serial interface, 2V-6V supply, 250 µA supply current, 28-PLCC (J-Lead), surface mount, tube.

$13.47Ref. price · indicative, final on quote
Packaging28-LCC (J-Lead)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ICM7218AIQI+ Technical Specifications
ParameterValue
Display typeLED
Mounting typeSurface Mount
Voltage2V ~ 6V
Current - supply250 µA
InterfaceSerial
Operating temperature-20°C ~ 85°C
PackageTube
Configuration7 Segment
Case28-LCC (J-Lead)
Digits or characters8 Digits

Product details

Display driver with integrated digit scanning

The ICM7218AIQI+ is an 8-digit, 7-segment LED display driver from Analog Devices, handling the multiplexing and current drive for a numeric or alphanumeric LED bank through a serial interface. Supply range spans 2V to 6V, drawing a typical 250 µA from the logic rail — the driver's own consumption stays low enough that the display current, not the driver, sets the system power budget.

28-PLCC J-Lead package and temperature grade

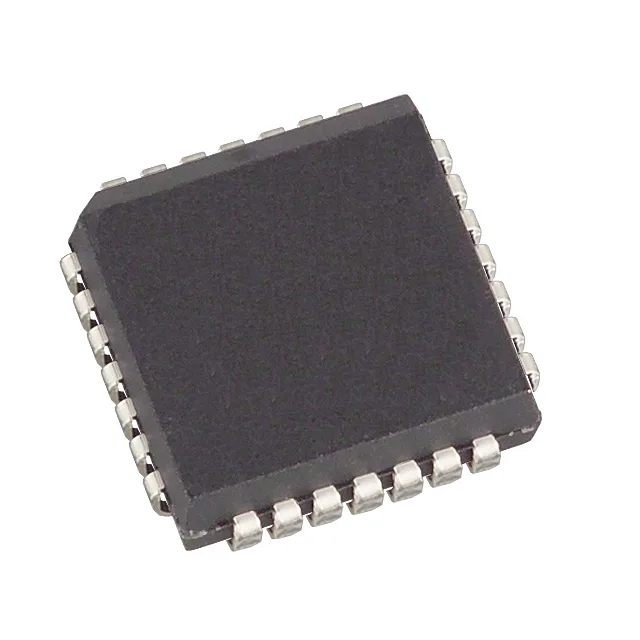

Housed in a 28-lead PLCC with J-bend leads (28-LCC J-Lead), the body measures 11.51 mm per side — a standard footprint for socketed or soldered placement on a surface-mount board. Rated for -20°C to 85°C operation, the ICM7218AIQI+ covers commercial and extended-industrial ambient ranges without forced airflow.

ROHS3 compliant per the manufacturer's declaration, with no restricted substances above the threshold limits.

Frequently asked questions

What package does the ICM7218AIQI+ come in?

It ships in a 28-lead PLCC with J-bend leads (28-LCC J-Lead), body size 11.51 mm square. The package is suitable for surface-mount soldering or low-insertion-force sockets.
