What the DS9034I-PCX+ does in the assembly

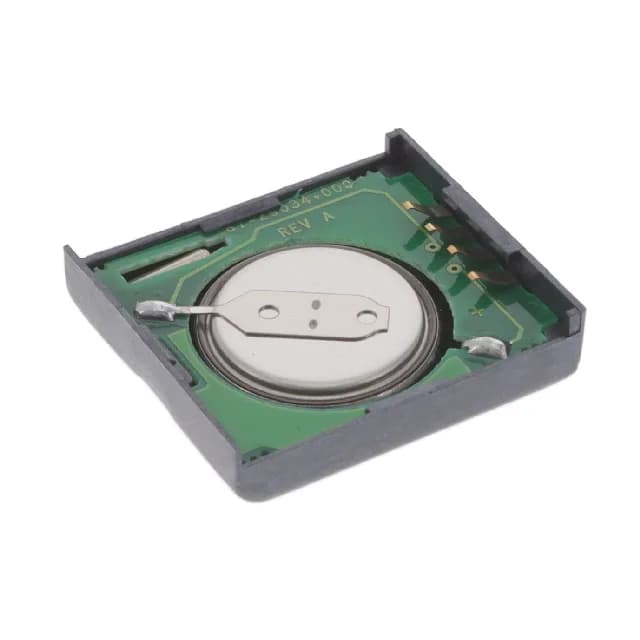

The DS9034I-PCX+ is a Back-Up Management IC from Analog Devices, designed to provide a replaceable lithium cell and control logic for nonvolatile SRAM and real-time clock (RTC) circuits. It integrates a Lithium Cell and the necessary power-switching and write-protect functions so that an external SRAM or RTC retains data when the main supply drops. The part is housed in a 34-PowerCap Module, a socketed, snap-on package that allows the battery and support circuitry to be replaced without desoldering the memory device underneath.
Temperature grade and deployment environment
Rated for -40°C to 85°C, this is an industrial-temperature device. It fits telecom base stations, outdoor industrial controllers, utility metering, and security systems that need reliable data retention through power loss. It is not qualified for automotive under-hood environments (125°C junction), but the range covers most cabinet and enclosure applications.
Package and footprint reality
The 34-PowerCap Module is a surface-mount package that mates with a matching socket on the PCB — typically the DS9034PCX socket or a footprint compatible with the DS12C887 family. The module snaps onto the base SRAM/RTC device, so the battery and backup controller are field-replaceable. Ground shipment only due to the lithium cell — no air freight for this part.
