Analog Devices DS2780E+ — DC-DC Power Modules
Analog Devices

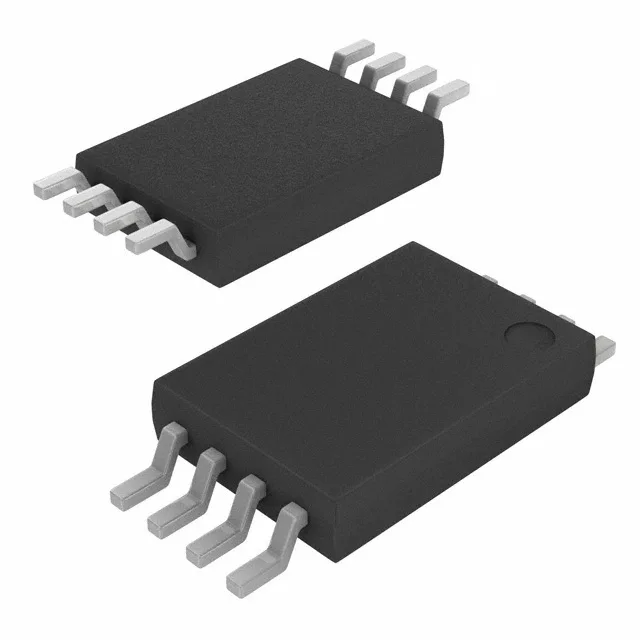

DS2780E+ Battery Monitor, 1-Wire, 8-TSSOP, Analog Devices

MPNDS2780E+
End of Life

Analog Devices DS2780E+ Battery Monitor, 1-Wire Interface, 1-Cell Li-Ion/Polymer, 8-TSSOP Package, Tube.

$10.34Ref. price · indicative, final on quote
DS2780E+ datasheet
Packaging8-TSSOP (0.173", 4.40mm Width)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

DS2780E+ Technical Specifications
ParameterValue
Mounting typeSurface Mount
Interface1-Wire
Operating temperature-20°C ~ 70°C (TA)
PackageTube
FunctionBattery Monitor
Case8-TSSOP (0.173\", 4.40mm Width)
Number of cells1
Battery chemistryLithium Ion/Polymer

Product details

Single-cell Li-Ion/Polymer fuel gauge with 1-Wire digital interface

The DS2780E+ is a battery monitor IC from Analog Devices designed for single-cell Lithium Ion/Polymer packs, communicating over a 1-Wire interface to report remaining capacity, voltage, current, and temperature. Housed in an 8-TSSOP package (0.173", 4.40 mm width), the surface-mount footprint suits compact portable designs where board space is tight.

Compliant to ROHS3, the part meets the latest European hazardous-substance restrictions without a transition risk.
