Mixed-signal MCU for precision measurement and control
The Analog Devices ADUCM410BBCZ is a 32-bit ARM Cortex-M33 microcontroller running at 160 MHz, built for applications that need both digital control and on-chip analog conversion. It integrates 1 MB of Flash program memory and 128 KB of SRAM, plus a 16-channel 16-bit SAR ADC and a 12-channel 12-bit DAC array — enough to handle multi-sensor acquisition and closed-loop actuation without an external analog front-end. The part is rated for -40°C to 105°C, suiting it for industrial motor drives, factory automation I/O modules, and under-hood automotive sensor nodes. Peripherals include DMA, POR, PWM, and WDT, with I²C, SPI, and UART/USART for sensor and actuator buses.
160 MHz Cortex-M33 — what it means for the control loop
The 160 MHz core clock on a Cortex-M33 with single-cycle multiply and hardware divide means the processor can execute a PID loop or a digital filter tap within a few tens of nanoseconds. For a 16-bit ADC conversion at 1 MSPS, the MCU has roughly 160 clock cycles per sample to read, condition, and act — enough headroom for a real-time control loop without offloading to a separate DSP. The 128 KB SRAM holds multiple conversion buffers and a modest RTOS footprint.
Integrated data converters — analog front-end on-chip
The 16-channel 16-bit SAR ADC handles multi-sensor acquisition. The 12-bit DAC array provides analog set-points or trim voltages.
Package and footprint

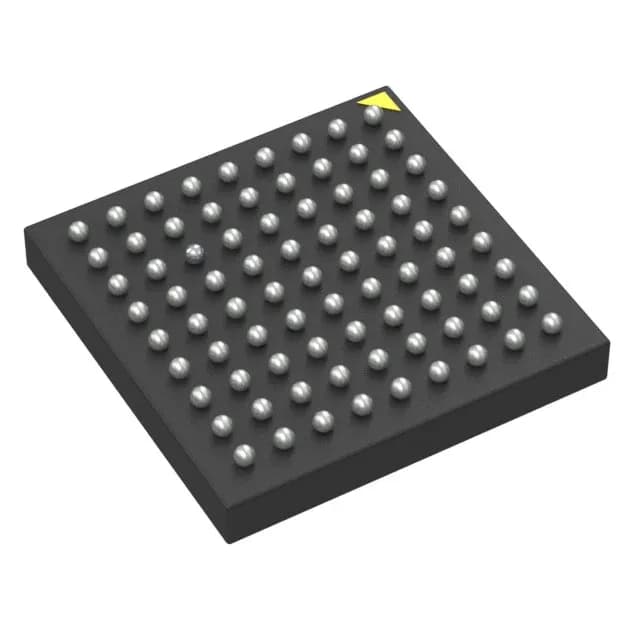

The ADUCM410BBCZ comes in an 81-ball CSPBGA (5x5 mm body), surface-mount only. The ball pitch requires controlled impedance routing and a solder-mask-defined pad on the PCB.
