Analog Devices ADP2108ACBZ-1.8-R7 — Logic ICs
Analog Devices

ADP2108ACBZ-1.8-R7 Buck Converter, 1.8V Fixed Output, 600mA

MPNADP2108ACBZ-1.8-R7
End of Life

Analog Devices ADP2108ACBZ-1.8-R7, step-down buck regulator, fixed 1.8V output, 600mA, 3MHz switching, 5-WLCSP (1.02x1.45 mm), -40°C to 125°C, surface mount, synchronous rectification.

$2.53Ref. price · indicative, final on quote
ADP2108ACBZ-1.8-R7 datasheet
Packaging5-WFBGA, WLCSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ADP2108ACBZ-1.8-R7 Technical Specifications
ParameterValue
Output typeFixed
Mounting typeSurface Mount
Voltage - input5.5V
Voltage - output (Min (Fixed))1.8V
Current - output600mA
Frequency3MHz
Number of outputs1
Operating temperature-40°C ~ 125°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Down
TopologyBuck
Case5-WFBGA, WLCSP
Output configurationPositive
Synchronous rectifierYes

Product details

600 mA, 3 MHz synchronous buck in a 1.02×1.45 mm WLCSP

It integrates a synchronous rectifier, so no external Schottky diode is needed, and the positive output configuration keeps the BOM simple for point-of-load regulation.

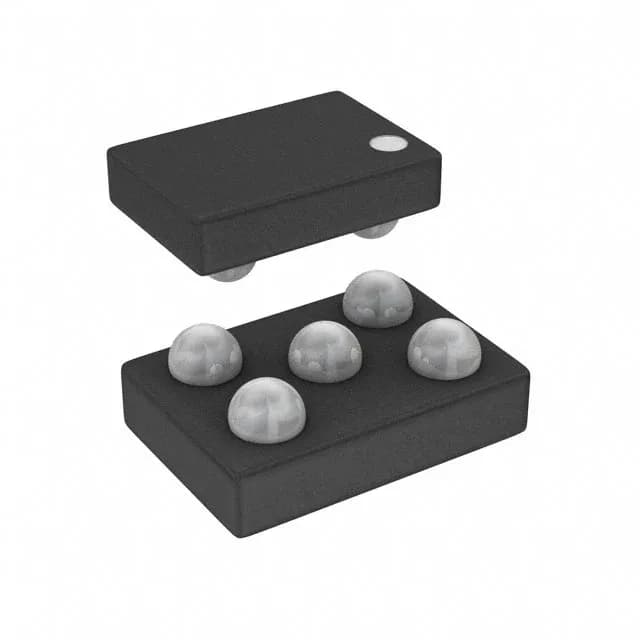

Package and footprint: 5-ball WLCSP

Housed in a 5-WFBGA, WLCSP with a supplier device package size of 1.02x1.45 mm, this part is intended for direct surface-mount assembly on a PCB. The WLCSP (wafer-level chip-scale package) means the die is essentially the package — no plastic overmold — so the footprint is the bare minimum for a 600 mA regulator.

Temperature grade and operating range

The synchronous rectifier maintains efficiency across the full temperature range, and the 3 MHz switching frequency keeps the inductor small enough to fit alongside the WLCSP on a dense board.

Frequently asked questions

Can ADP2108ACBZ-1.8-R7 be used in a 3.3V to 1.8V application?

Yes. The fixed 1.8 V output is regulated at up to 600 mA, and the 3 MHz switching frequency allows a small inductor — typically 1 µH to 2.2 µH — for a compact point-of-load design.

What are the equivalent parts for ADP2108ACBZ-1.8-R7?

The ADP2108 family includes fixed-output voltage variants that are pin-compatible and share the same 5-WLCSP footprint, 600 mA rating, and 3 MHz switching frequency. The ADP2108ACBZ-1.0-R7 (1.0 V output), ADP2108ACBZ-2.5-R7 (2.5 V output), and ADP2108ACBZ-3.3-R7 (3.3 V output) are direct functional equivalents differing only in the regulated voltage. No second-source from another manufacturer is documented.
