Analog Devices ADP1763WACPZ-1.1-R7 — Signal Isolation
Analog Devices

ADP1763WACPZ-1.1-R7 3A Low-VIN LDO, Fixed 1.1V Output

MPNADP1763WACPZ-1.1-R7
End of Life

Analog Devices ADP1763WACPZ-1.1-R7, 3A low-VIN very-low-dropout linear regulator, fixed 1.1V output, 16-LFCSP (3x3 mm) exposed pad, -40°C to 125°C.

$11.92Ref. price · indicative, final on quote
ADP1763WACPZ-1.1-R7 datasheet
Packaging16-WFQFN Exposed Pad, CSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ADP1763WACPZ-1.1-R7 Technical Specifications
ParameterValue
Output typeFixed
Mounting typeSurface Mount
Voltage - input1.98V
Voltage - output (Min (Fixed))1.1V
Current - output3A
Current - supply16 mA
Current - quiescent8 mA
Operating temperature-40°C ~ 125°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Case16-WFQFN Exposed Pad, CSP
Control featuresEnable, Power Good, Soft Start
Protection featuresOver Current, Over Temperature, Short Circuit
Number of regulators1
Output configurationPositive

Product details

3 A LDO for tight 1.98 V rails

The Analog Devices ADP1763WACPZ-1.1-R7 is a single-output, positive, fixed 1.1 V linear regulator rated for 3 A continuous output. Its maximum input voltage is 1.98 V.

Lifecycle and sourcing — active, no obsolescence concern

The ADP1763WACPZ-1.1-R7 carries an Active lifecycle status and is ROHS3 compliant. There is no last-time-buy or end-of-life notice. For BOM freeze or new-design qualification, this part is a safe commitment — no near-term obsolescence watch. The 'W' suffix in the order code indicates a wide-temperature or automotive-grade variant (consistent with the -40°C to 125°C range). If a non-automotive version is acceptable, the ADP1763ACPZ-1.1-R7 is a functional equivalent with the same output and package, differing only in the temperature qualification tier. Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing confirmed at quote time.

Frequently asked questions

What is the recommended replacement for ADP1763WACPZ-1.1-R7?

There is no official replacement because the part is active. For a functionally identical alternative without the wide-temperature qualification, the ADP1763ACPZ-1.1-R7 shares the same output voltage, current rating, and package.

What package is ADP1763WACPZ-1.1-R7 available in?

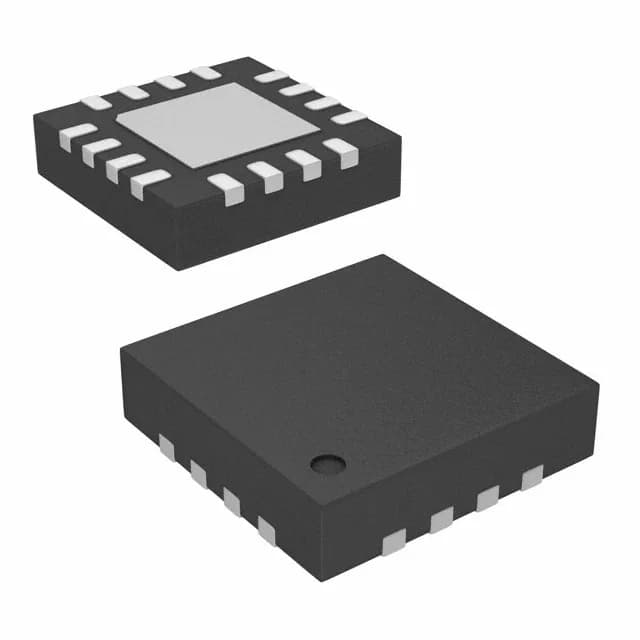

It is supplied in a 16-WFQFN Exposed Pad, CSP package (supplier device package 16-LFCSP 3×3 mm), available in Tape & Reel or Cut Tape.
