Alpha & Omega Semiconductor Inc. AOD4 Series

8 variants · Alpha & Omega Semiconductor Inc.

About the Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AOD4 Series series

The Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AOD4 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-252-3, DPak (2 Leads + Tab), SC-63, drive voltage (Max rds on, min rds on) of 4.5V, 10V and mounting type of Surface Mount. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and FET type, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C: 12A (Tc) · 13A (Ta), 40A (Tc) · 20A (Tc) · 26A (Tc)
Drain to source voltage: 40 V · 60 V
FET type: N-Channel · P-Channel
Gate charge (Qg) (Max) @ vgs: 10.8 nC @ 10 V · 20 nC @ 10 V · 21 nC @ 10 V · 54 nC @ 10 V · 68 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds: 650 pF @ 20 V · 1125 pF @ 20 V · 1185 pF @ 30 V · 1920 pF @ 30 V · 3600 pF @ 30 V
Operating temperature: -55°C ~ 150°C (TJ) · -55°C ~ 175°C (TJ)
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Power dissipation: 2.5W (Ta), 37W (Tc) · 2.5W (Ta), 50W (Tc) · 2.5W (Ta), 60W (Tc) · 6.2W (Ta), 60W (Tc)

Variant comparison

Parameter	AOD409	AOD407	AOD413A	AOD442G	AOD454A
Current - continuous drain (Id) @ 25°C	26A (Tc)	12A (Tc)	12A (Tc)	13A (Ta), 40A (Tc)	20A (Tc)
Drain to source voltage	60 V	60 V	40 V	60 V	40 V
FET type	P-Channel	P-Channel	P-Channel	N-Channel	N-Channel
Gate charge (Qg) (Max) @ vgs	54 nC @ 10 V	20 nC @ 10 V	21 nC @ 10 V	68 nC @ 10 V	10.8 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	3600 pF @ 30 V	1185 pF @ 30 V	1125 pF @ 20 V	1920 pF @ 30 V	650 pF @ 20 V
Operating temperature	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 175°C (TJ)
Package	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)
Power dissipation	2.5W (Ta), 60W (Tc)	2.5W (Ta), 50W (Tc)	2.5W (Ta), 50W (Tc)	6.2W (Ta), 60W (Tc)	2.5W (Ta), 37W (Tc)

Shared specifications

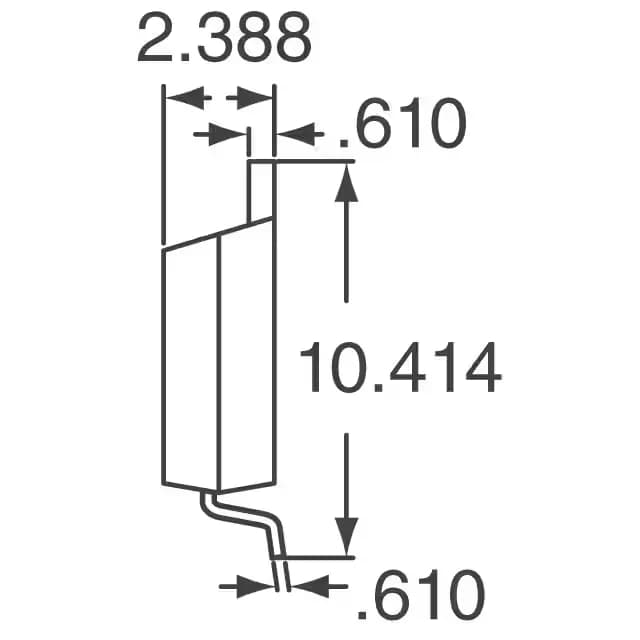

Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Drive voltage (Max rds on, min rds on): 4.5V, 10V
Mounting type: Surface Mount
Technology: MOSFET (Metal Oxide)
Vgs: ±20V

Request a quote on any Alpha & Omega Semiconductor Inc. AOD4 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AOD4 Series variants differ?: Alpha & Omega Semiconductor Inc. AOD4 Series part numbers differ by current - continuous drain (Id) @ 25°C, drain to source voltage, FET type and gate charge (Qg) (Max) @ vgs. Use the selection guide above to pick by current - continuous drain (Id) @ 25°C.
How many Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AOD4 Series part numbers are listed?: 8 Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AOD4 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AOD4 Series?: Request a quote (RFQ) for any Alpha & Omega Semiconductor Inc. AOD4 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
