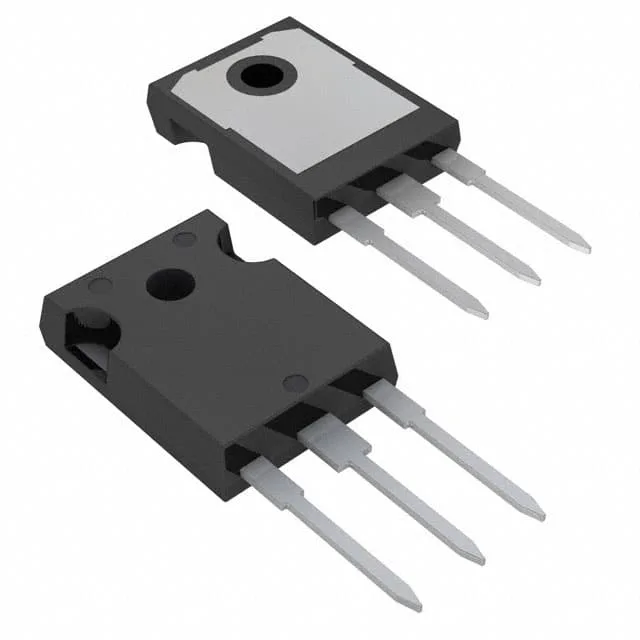

IGBT 1350V 30A 170W TO247
$4.5Ref. price · indicative, final on quote
PackagingTO-247-3
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Alpha IGBT™ |
| Input type | Standard |
| Mounting type | Through Hole |
| Voltage - collector emitter breakdown | 1350 V |
| Current - collector (Ic) | 60 A |
| Current - collector pulsed | 200 A |
| Power - max | 340 W |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tube |
| Gate charge | 62 nC |
| Case | TO-247-3 |
| Test condition | 600V, 30A, 10Ohm, 15V |
| Switching energy | 1.47mJ (off) |
| Td (on/off) @ 25°C | -/129ns |
| Vce(on) (Max) @ vge, ic | 2.2V @ 15V, 30A |
