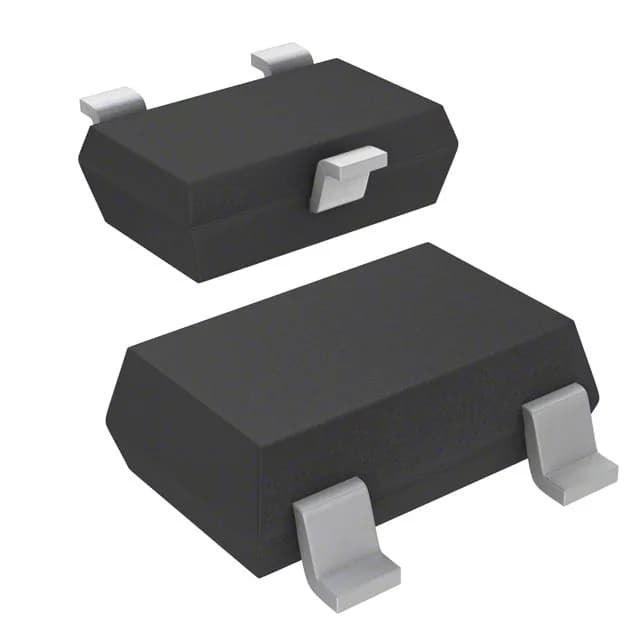

APS12205LLHALT
Allegro MicroSystems
-40°C ~ 150°C (TA)Automotive, AEC-Q100Tape & Reel (TR); Cut Tape (CT)
Ref. price$0.61
Lead time on requestGet quote ›
Allegro MicroSystems APS1 Series
17 variants · Allegro MicroSystems
About the Allegro MicroSystems Allegro MicroSystems APS1 Series series
The Allegro MicroSystems Allegro MicroSystems APS1 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common function of Latch, mounting type of Surface Mount and output type of Open Drain. Variants differ by case, current - supply and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- SOT-23-5 Thin, TSOT-23-5 · SOT-23W
- Current - supply
- 4mA · 4.5mA
- Operating temperature
- -40°C ~ 150°C · -40°C ~ 150°C (TA)
- Sensing range
- 4mT Trip, -4mT Release · 4.4mT Trip, -4.4mT Release
Variant comparison
| Parameter | APS12205LLHALT | APS12626LLHALT-BAP | APS12626LLHALX-AAP |
|---|---|---|---|
| Case | SOT-23W | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 |
| Current - supply | 4mA | 4.5mA | 4.5mA |
| Operating temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C | -40°C ~ 150°C |
| Sensing range | 4mT Trip, -4mT Release | 4.4mT Trip, -4.4mT Release | 4.4mT Trip, -4.4mT Release |
Shared specifications
- Function
- Latch
- Mounting type
- Surface Mount
- Output type
- Open Drain
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Polarization
- South Pole
- Technology
- Hall Effect
- Test condition
- -40°C ~ 150°C
- Voltage
- 2.8V ~ 5.5V
Request a quote on any Allegro MicroSystems APS1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Allegro MicroSystems Allegro MicroSystems APS1 Series variants differ?
- Allegro MicroSystems APS1 Series part numbers differ by case, current - supply, operating temperature and sensing range. Use the selection guide above to pick by case.
- How many Allegro MicroSystems Allegro MicroSystems APS1 Series part numbers are listed?
- 17 Allegro MicroSystems Allegro MicroSystems APS1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Allegro MicroSystems Allegro MicroSystems APS1 Series?
- Request a quote (RFQ) for any Allegro MicroSystems APS1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
