ALT80800KLPATR
Allegro MicroSystems
-40°C ~ 125°C (TJ)500kHzLighting
Ref. price$2.4
Lead time on requestGet quote ›
Allegro MicroSystems ALT8 Series
3 variants · Allegro MicroSystems
About the Allegro MicroSystems Allegro MicroSystems ALT8 Series series
The Allegro MicroSystems Allegro MicroSystems ALT8 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - output (Channel) of 2A, dimming of Analog, PWM and internal switch of Yes. Variants differ by applications, case and frequency, so you can match the exact applications your application requires using the selection guide below.
Select a variant by
- Applications
- Automotive, Lighting · Lighting
- Case
- 10-WFDFN Exposed Pad · 16-TSSOP (0.173\", 4.40mm Width) Exposed Pad
- Frequency
- 360kHz ~ 2.2MHz · 500kHz
- Mounting type
- Surface Mount · Surface Mount, Wettable Flank
- Operating temperature
- -40°C ~ 125°C (TJ) · -40°C ~ 150°C (TJ)
- Topology
- Step-Down (Buck) · Step-Down (Buck), Step-Up (Boost)
- Voltage
- 50V · 55V
- Voltage - output
- 20V · 50V
Variant comparison
| Parameter | ALT80800KLPATR | ALT80802KEJJTR |
|---|---|---|
| Applications | Lighting | Automotive, Lighting |

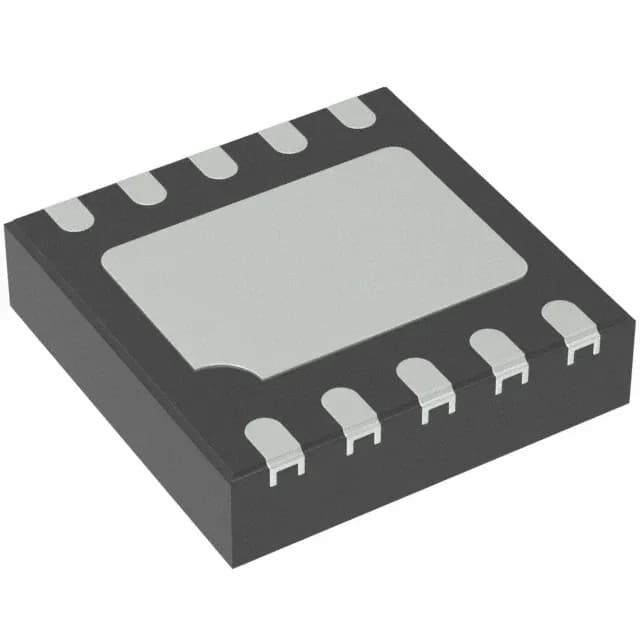

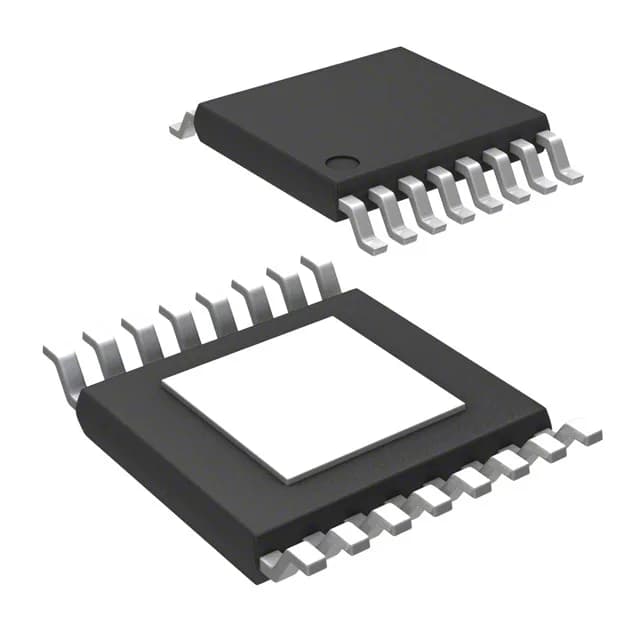

| Case | 16-TSSOP (0.173\", 4.40mm Width) Exposed Pad | 10-WFDFN Exposed Pad |
| Frequency | 500kHz | 360kHz ~ 2.2MHz |
| Mounting type | Surface Mount | Surface Mount, Wettable Flank |
| Operating temperature | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Topology | Step-Down (Buck) | Step-Down (Buck), Step-Up (Boost) |
| Voltage | 55V | 50V |
| Voltage - output | 50V | 20V |
Shared specifications
- Current - output (Channel)
- 2A
- Dimming
- Analog, PWM
- Internal switch
- Yes
- Number of outputs
- 1
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Type
- DC DC Regulator
Request a quote on any Allegro MicroSystems ALT8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Allegro MicroSystems Allegro MicroSystems ALT8 Series variants differ?
- Allegro MicroSystems ALT8 Series part numbers differ by applications, case, frequency and mounting type. Use the selection guide above to pick by applications.
- How many Allegro MicroSystems Allegro MicroSystems ALT8 Series part numbers are listed?
- 3 Allegro MicroSystems Allegro MicroSystems ALT8 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Allegro MicroSystems Allegro MicroSystems ALT8 Series?
- Request a quote (RFQ) for any Allegro MicroSystems ALT8 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
