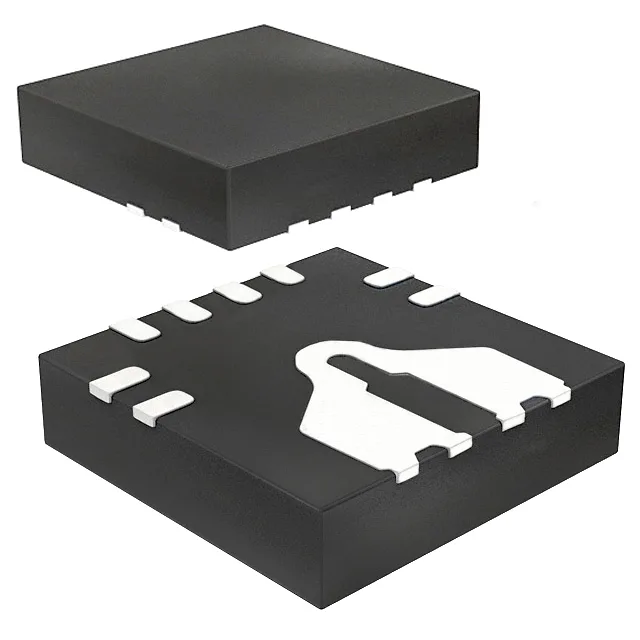

ACS711KEXLT-31AB-T
Allegro MicroSystems
Surface MountTape & Reel (TR); Cut Tape (CT)±5%
Ref. price$1.51
Lead time on requestGet quote
Allegro MicroSystems ACS7 Dc Dc Modules Series
17 variants · Allegro MicroSystems
About the Allegro MicroSystems ACS7 Dc Dc Modules Series
The Allegro MicroSystems ACS7 Dc Dc Modules Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common channels of 1 and output of Ratiometric, Voltage. Variants differ by accuracy, case and current - sensing, so you can match the exact accuracy your application requires using the selection guide below.
Select a variant by
- Accuracy
- ±0.8% · ±1.5% · ±3.5% · ±3% · ±4% · ±5%
- Case
- 5-CB Formed Leads, PFF · 7-PowerSMD Module · 8-SOIC (0.154\", 3.90mm Width) · 12-PowerWFQFN
- Current - sensing
- 5A · 20A · 30A · 31A · 50A · 100A · 150A
- Current - supply
- 5.5mA · 12mA · 13.5mA · 14mA · 15mA
- For measuring
- AC/DC · DC
- Frequency
- DC ~ 80kHz · DC ~ 100kHz · DC ~ 120kHz
- Linearity
- ±1.5% · ±1%
- Mounting
- Surface Mount · Through Hole
Shared specifications
- Channels
- 1
- Output
- Ratiometric, Voltage
Variant comparison
| Parameter | ACS711KEXLT-31AB-T | ACS722LLCTR-20AU-T | ACS723LLCTR-05AB-T | ACS725LLCTR-20AU-T | ACS725LLCTR-30AU-T | ACS759KCB-150B-PFF-T |
|---|---|---|---|---|---|---|
| Accuracy | ±5% | ±3% | ±3% | ±0.8% | ±0.8% | ±4% |
| Case | 12-PowerWFQFN | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 5-CB Formed Leads, PFF |
| Current - sensing | 31A | 20A | 5A | 20A | 30A | 150A |
| Current - supply | 5.5mA | 12mA | 14mA | 14mA | 14mA | 13.5mA |
| For measuring | AC/DC | DC | AC/DC | DC | DC | AC/DC |
| Frequency | DC ~ 100kHz | DC ~ 80kHz | DC ~ 80kHz | DC ~ 120kHz | DC ~ 120kHz | DC ~ 120kHz |
| Linearity | ±1% | ±1% | ±1% | ±1.5% | ±1.5% | ±1% |
| Mounting | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
Request a quote on any Allegro MicroSystems ACS7 Dc Dc Modules Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
