Abracon LLC ASE3 Series

36 variants · Abracon LLCAll Crystals & Oscillators →

About the Abracon LLC ASE3 Series

The Abracon LLC ASE3 Series series groups 36 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common absolute pull range of -, base resonator of Crystal and case of 4-SMD, No Lead. Variants differ by current - supply, frequency and frequency stability, so you can match the exact current - supply your application requires using the selection guide below.

Select a variant by

Current - supply: 4mA · 7mA · 13mA
Frequency: 3.6864 MHz · 24 MHz · 32 MHz · 33 MHz · 33.333 MHz
Frequency stability: ±25ppm · ±50ppm · ±100ppm
Operating temperature: -40°C~85°C · -20°C ~ 70°C · -20°C~70°C
Package: Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Voltage: 1.8V · 3.3V

Shared specifications

Absolute pull range: -
Base resonator: Crystal
Case: 4-SMD, No Lead
Current - supply (Disable): 10µA
Function: Enable/Disable
Height - seated: 0.047\" (1.20mm)
Mounting: Surface Mount
Output: CMOS
Ratings: -
Size (Dimension): 0.126\" L x 0.098\" W (3.20mm x 2.50mm)
Type: XO (Standard)

Variant comparison

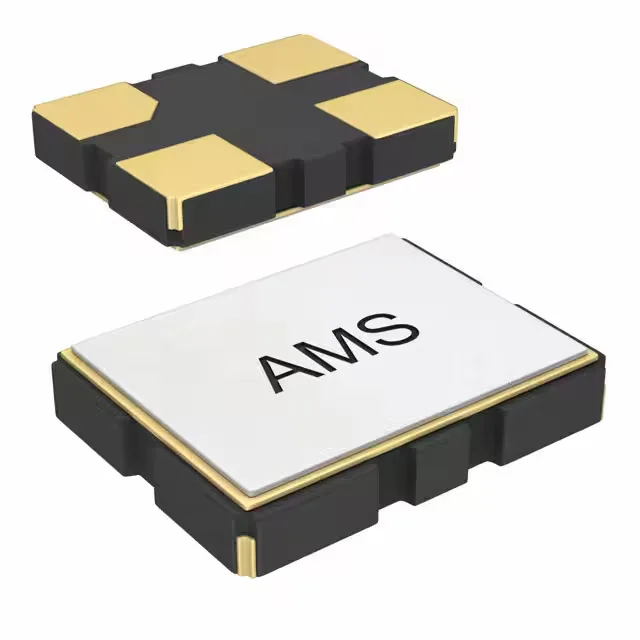

Parameter	ASE-3.6864MHZ-LR-T	ASE-33.333MHZ-LC-T	ASE-32.000MHZ-LR-T	ASE3-24.000MHZ-LC-T	ASE-33.000MHZ-E-T	ASE-33.000MHZ-ET
Current - supply	7mA	13mA	13mA	4mA	13mA	13mA
Frequency	3.6864 MHz	33.333 MHz	32 MHz	24 MHz	33 MHz	33 MHz
Frequency stability	±25ppm	±50ppm	±25ppm	±50ppm	±100ppm	±100ppm
Operating temperature	-40°C~85°C	-40°C~85°C	-40°C~85°C	-40°C~85°C	-20°C ~ 70°C	-20°C~70°C
Package	Tape & Reel (TR)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)
Voltage	3.3V	3.3V	3.3V	1.8V	3.3V	3.3V

Request a quote on any Abracon LLC ASE3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
